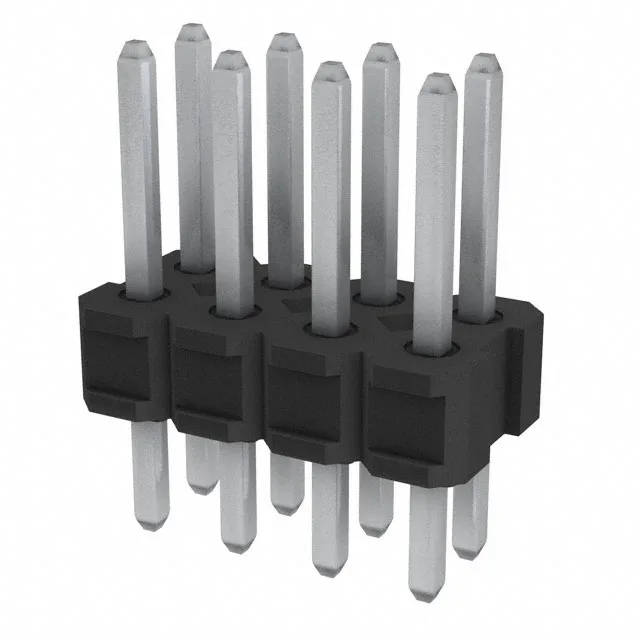

75844-302-08LF — Amphenol product photo
Amphenol

Amphenol 75844-302-08LF BERGSTIK Header, 8 Pos, 0.100" Pitch

MPN75844-302-08LF
Active

Amphenol BERGSTIK® 75844-302-08LF, unshrouded breakaway header, 8 positions, dual-row, 0.100" (2.54 mm) pitch, through hole, solder termination, tin-plated contacts, 5 A, 110 V.

$0.5172Ref. price · indicative, final on quote
75844-302-08LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

75844-302-08LF Technical Specifications
ParameterValue
SeriesBERGSTIK®
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader, Breakaway
Fastening typePush-Pull
Voltage rating110V
Current rating5A
Operating temperature-65°C~130°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBag
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions8
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.135\" (3.43mm)
Overall contact length0.465\" (11.81mm)
Contact finish - matingTin
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating150.0µin (3.81µm)

Product details

The Amphenol 75844-302-08LF is an 8-position, dual-row unshrouded breakaway header from the BERGSTIK® series — a staple for board-to-board and cable interconnect where a standard 0.100" (2.54 mm) pitch footprint is needed. It is a male pin header with square pins, through-hole solder termination, and a push-pull fastening style.

Tin contacts are suited for low-mating-cycle applications. The overall contact length of 0.465" (11.81 mm) with a 0.230" (5.84 mm) mating length and 0.135" (3.43 mm) solder post gives a standard through-hole standoff for 0.062" boards.

Frequently asked questions

What is the pitch of the 75844-302-08LF BERGSTIK header?

The pitch is 0.100" (2.54 mm) for both the mating interface and the row spacing, matching standard DIP footprints and perfboard grids.
