It is a through-hole solder-terminated male pin header on a 0.100" (2.54 mm) pitch, designed for board-to-board or cable interconnect applications where a low-profile, unshrouded interface is acceptable. The 10 positions are all loaded, and the 0.100" row spacing mirrors the pitch, giving a square grid for routing. The tin-plated mating contacts carry a 150.0 µ" (3.81 µm) finish — adequate for occasional mating cycles in a stable environment, though not intended for frequent field reconnection. The housing is rated UL94 V-0, and the operating temperature range spans -65°C to 130°C. The 0.230" (5.84 mm) mating pin length and 0.135" (3.43 mm) solder post length define the board stack-up and through-hole depth.

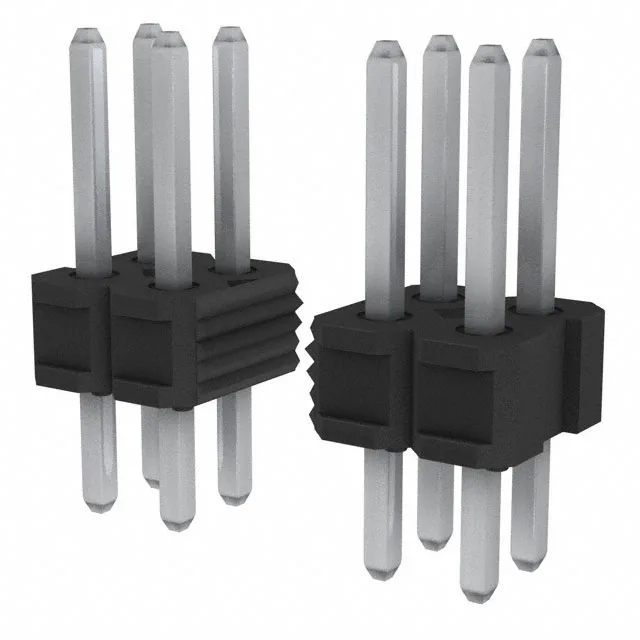

FCI BERGSTIK® unshrouded breakaway header, 10 circuits, 2 rows, 0.100" (2.54 mm) pitch, 5 A, tin-plated contacts, through-hole solder termination.
$0.6048Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 110V |
| Current rating | 5A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.135\" (3.43mm) |
| Overall contact length | 0.465\" (11.81mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
