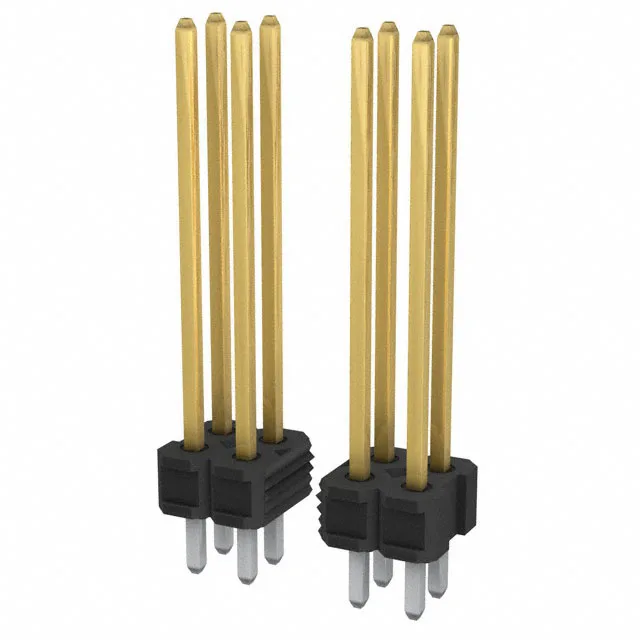

75844-592R14LF - Amphenol ICC (FCI)
MPN75844-592R14LF
Obsolete
$1.6169Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 110V |
| Current rating | 5A |
| Operating temperature | -65°C ~ 130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.118\" (3.00mm) |
| Overall contact length | 0.906\" (23.00mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.687\" (17.46mm) |
