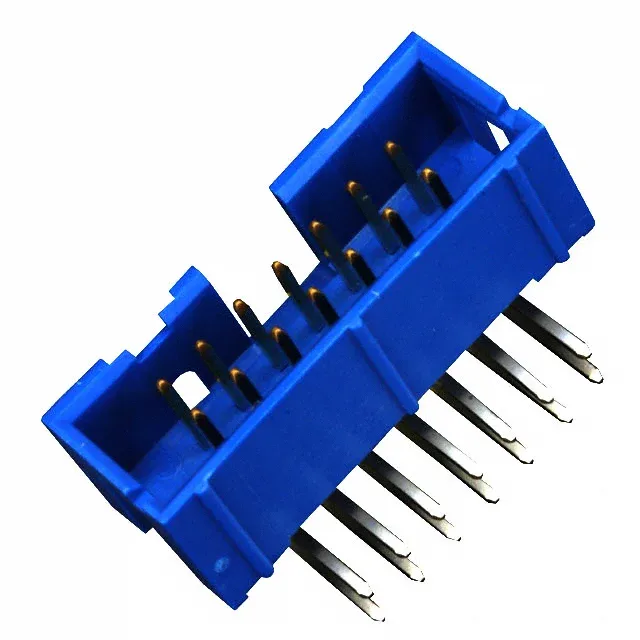

Amphenol ICC (FCI) Quickie™ 75867-102LF, 14-position, 2-row, right-angle through-hole header, 0.100" (2.54mm) pitch, shrouded 4-wall, gold GXT™ mating finish, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Quickie™ |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.362\" (9.20mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Parameter | Value |
|---|---|
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.236\" (6.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 75867-102LF: The keying slot prevents mismating with non-keyed or differently-keyed receptacles — a common source of harness rework on the floor.
The 75867-132LF is an 8-position variant in the same series — a lower-density option for smaller harnesses.
0.100" (2.54mm) pitch between positions and between rows.
Yes, it includes a keying slot to prevent mismating with non-keyed receptacles.
Yes, it is a shrouded 4-wall header, which protects the pins and guides the mating receptacle.
