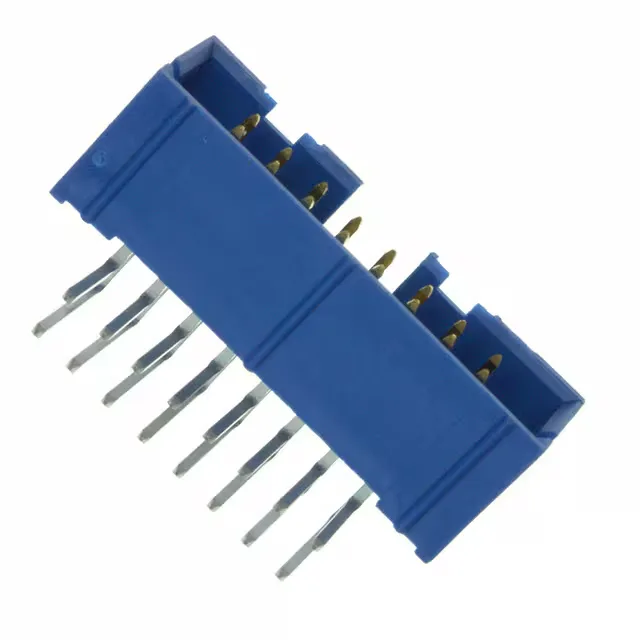

75867-103LF — Amphenol product photo
Amphenol

75867-103LF Amphenol ICC Quickie™ Header, 16 Pos, 2.54mm

MPN75867-103LF
Active

Amphenol ICC (FCI) Quickie™, 75867-103LF, Board to Cable/Wire, Header, Male Pin, 16 Positions, 2 Rows, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Solder, Push-Pull, Shrouded - 4 Wall, Gold GXT™ Mating, Tin Post, Blue, UL94 V-0

$2.1100Ref. price · indicative, final on quote
75867-103LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

75867-103LF Technical Specifications
ParameterValue
SeriesQuickie™
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlue
Insulation height0.362\" (9.20mm)
Insulation materialThermoplastic, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions16
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.120\" (3.05mm)
Contact finish - matingGold, GXT™
Contact length - mating0.236\" (6.00mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Right-Angle Quickie™ Header for Board-to-Cable Routing

The 75867-103LF: This 16-position, dual-row header from the Quickie™ series is specified when a board-edge connector needs to route a ribbon cable or discrete wires parallel to the PCB. The right-angle orientation keeps the cable exit low-profile against the board surface, freeing z-height in tight enclosures. A shrouded 4-wall housing protects the pins from accidental stubbing during mating.

16 Circuits, Dual-Row — BOM Fit Check

The row spacing is also 0.100" (2.54mm), so the footprint is a 2x8 grid. The 26- and 30-position vertical versions (75869-105LF, 75869-133LF) offer higher density but use a straight through-hole mounting — the right-angle orientation here is specific to board-edge cable routing.

It is RoHS compliant. Available for sourcing through independent distribution channels.
