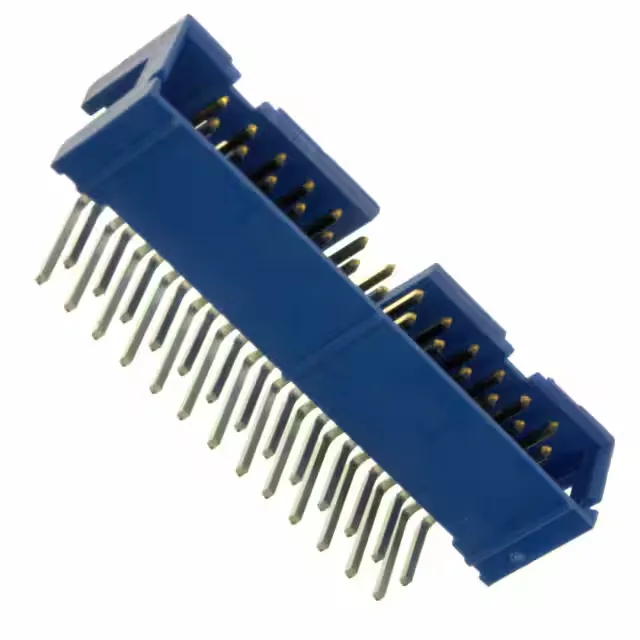

26-Position Right-Angle Header for Wire-to-Board Routing
The 75867-105LF: Right-angle through-hole mounting places the pin array perpendicular to the board, which keeps the mated cable assembly low-profile against the PCB — useful in enclosures with tight z-height budgets or where the cable routes along the board edge.
30 µinch GXT™ Gold Mating Surface for Field-Service Duty
Phosphor bronze contact material offers good spring properties and conductivity for signal-level currents in the Quickie™ series.
The housing material is rated UL94 V-0, which limits flame spread in equipment inside an enclosure where the connector is part of the power or signal path.
Peer Comparison — Position Count Across the 75867 Family
Within the same 75867 right-angle, shrouded header family, the 75867-105LF (26 positions) sits between the 16-position 75867-103LF and the 8-position 75867-132LF. The 75869-105LF is a 26-position, straight through-hole version of the same header — same pitch, plating, and housing, but vertical orientation instead of right-angle. If the cable routes perpendicular to the board, the 75869-105LF is the alternative; if it routes parallel, the 75867-105LF is the correct fit.
