34-circuit shrouded header for board-to-wire

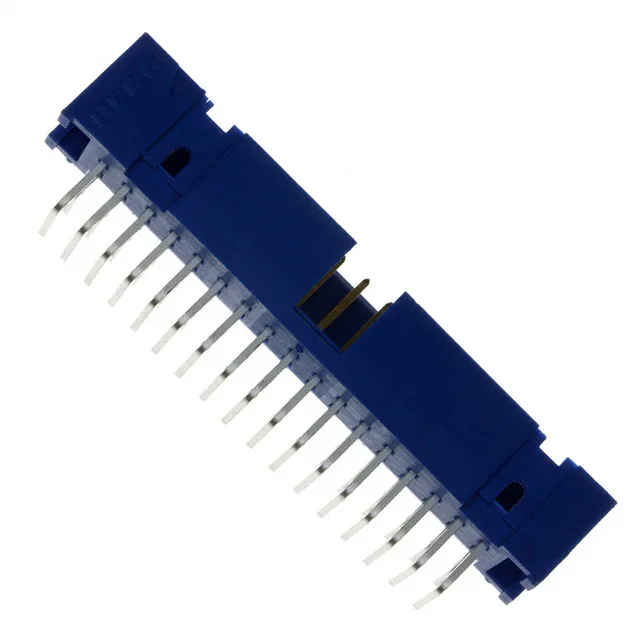

The 75867-106LF is the 34-circuit member of Amphenol ICC (FCI)'s Quickie header line, a shrouded board-to-wire interconnect with push-pull fastening and a keying slot to prevent mis-mating.
Amphenol ICC (FCI) Quickie header, order code 75867-106LF, 34 positions, dual row, 0.100" (2.54 mm) pitch, shrouded - 4 wall, GXT gold-plated mating contacts, through-hole right-angle, solder termination.
$3.4900Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | Quickie™ |
| Gender | Male Pin |
| Mounting type | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.362\" (9.20mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 34 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.236\" (6.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
How do I get current pricing and availability for 75867-106LF?
The part ships in Tube packaging.
