Pitch, footprint, and routing density
The 75867-131LF: The right-angle orientation places the header at the board edge, keeping the cable exit parallel to the PCB plane for space-constrained enclosures.

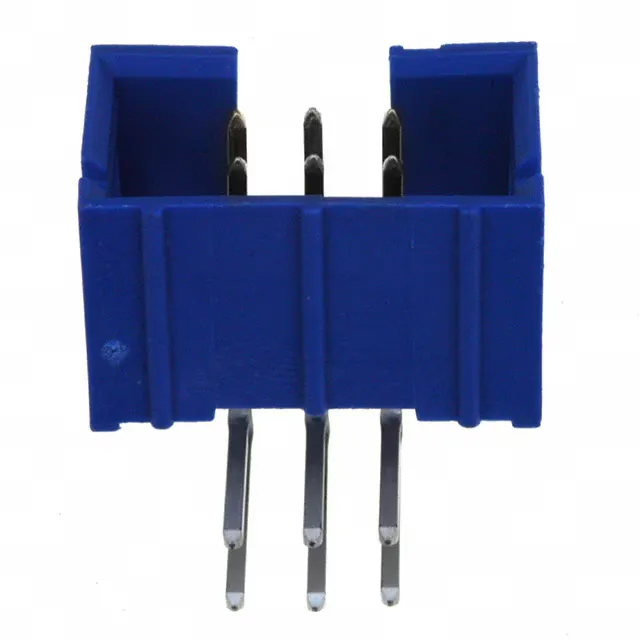

Amphenol ICC (FCI) 75867-131LF Quickie Header, 6 Pos, 2.54mm
MPN75867-131LF
Active
Amphenol ICC (FCI) Quickie header, order code 75867-131LF, 6 positions, dual row, 0.100" (2.54 mm) pitch, through-hole right-angle, gold GXT mating contacts, shrouded 4-wall, push-pull fastening, solder termination.
$1.0000Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Quickie™ |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.362\" (9.20mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.236\" (6.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What compliance documentation does Amphenol ICC (FCI) provide for the 75867-131LF?
The housing material is rated UL94 V-0. RoHS and REACH compliance documentation is available from the manufacturer.
