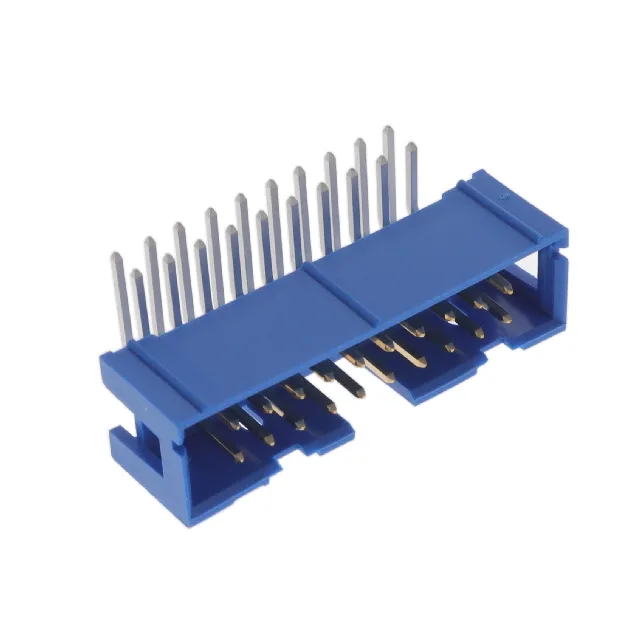

Amphenol ICC (FCI) Quickie header, order code 75867-304LF, 20 positions, dual row, 0.100" (2.54mm) pitch, shrouded - 4 wall, through-hole right-angle, solder termination, gold GXT mating contacts.
| Parameter | Value |
|---|---|
| Series | Quickie™ |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.362\" (9.20mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Parameter | Value |
|---|---|
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.236\" (6.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 75867-304LF is the 20-circuit member of the Amphenol ICC (FCI) Quickie shrouded header line, a board-to-cable/wire interconnect. It mates with matching Quickie receptacles via a push-pull fastening system and includes a keying slot to prevent mis-mating.
RoHS and REACH compliance documentation is available from the manufacturer upon request.
