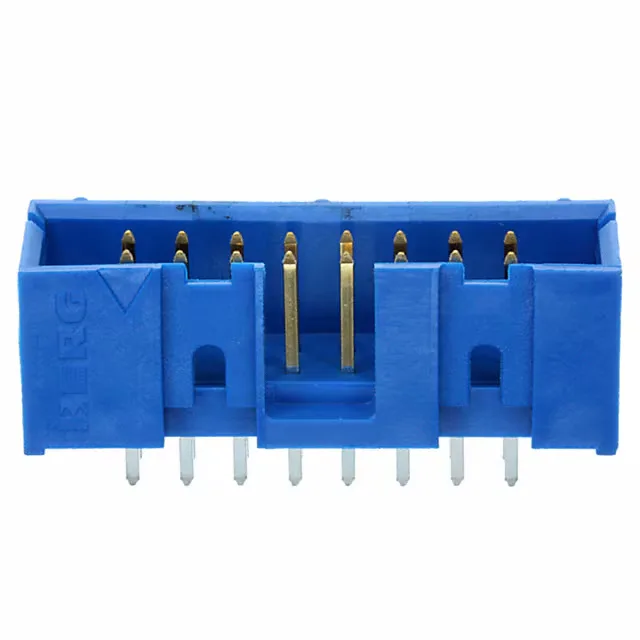

Amphenol Quickie™ header, order code 75869-103LF, 16 positions, dual row, 0.100" (2.54 mm) pitch, gold GXT™ mating contacts, through-hole solder termination, shrouded - 4 wall, push-pull fastening.
Amphenol Quickie™ header, order code 75869-103LF, 16 positions, dual row, 0.100" (2.54 mm) pitch, gold GXT™ mating contacts, through-hole solder termination, shrouded - 4 wall, push-pull fastening.
$1.9600Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | Quickie™ |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.377\" (9.57mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.236\" (6.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the style and connector type of the 75869-103LF?
The 75869-103LF is a Board to Cable/Wire header (male pin, square contact) from the Amphenol Quickie™ series.
What compliance documentation is available for this part?
RoHS and REACH compliance documentation is available from the manufacturer upon request.
