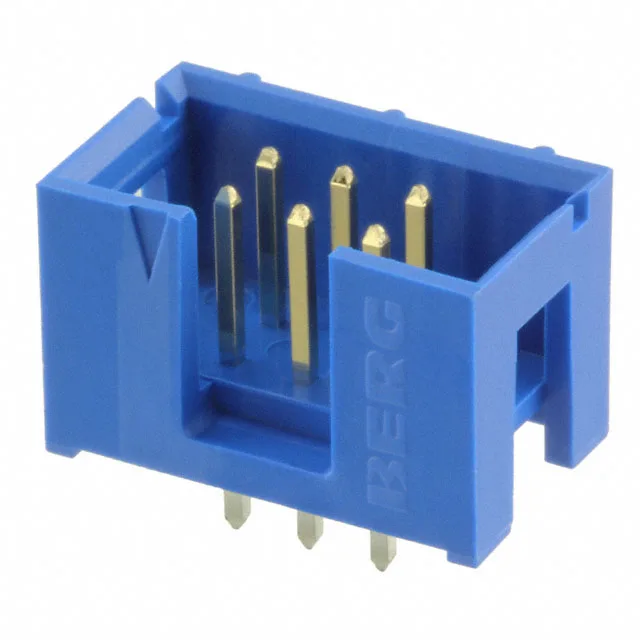

Amphenol ICC (FCI) Quickie header, order code 75869-331LF, 6 positions, dual row, 0.100" (2.54mm) pitch, gold GXT™ mating contacts, shrouded 4-wall, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | Quickie™ |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.377\" (9.57mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Parameter | Value |
|---|---|
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.236\" (6.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 75869-331LF: The housing is glass-filled thermoplastic rated UL94 V-0.
Active lifecycle per Amphenol ICC (FCI). No official successor or pin-compatible alternative is listed within the Quickie series.
Board to Cable/Wire style, Quickie series.
RoHS and REACH compliance documentation is available from the manufacturer.
