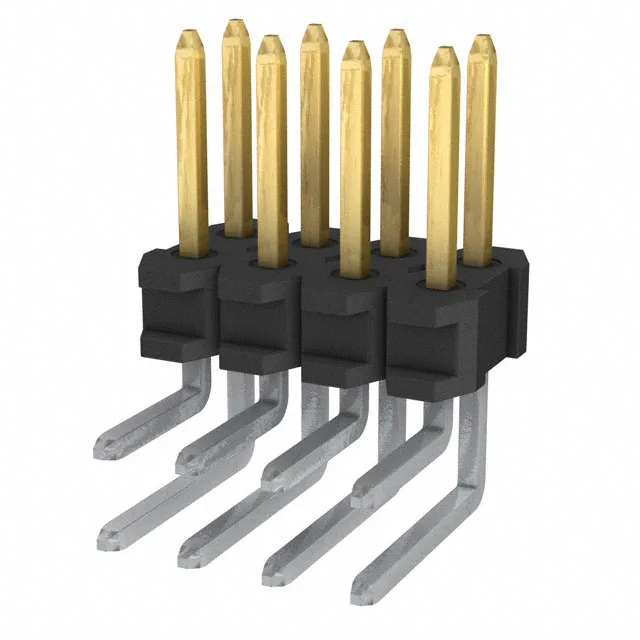

76345-804-08LF — Amphenol product photo
Amphenol

76345-804-08LF Amphenol ICC BERGSTIK Header, 8 Pos

MPN76345-804-08LF
Active

Amphenol ICC (FCI) BERGSTIK unshrouded header, 8 circuits, dual-row 0.100" (2.54mm) pitch, through-hole right-angle, 15µin GXT gold mating finish, UL94 V-0 black thermoplastic, bulk pack.

$0.7416Ref. price · indicative, final on quote
76345-804-08LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

76345-804-08LF Technical Specifications
ParameterValue
SeriesBERGSTIK®
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.248\" (6.30mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions8
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.126\" (3.20mm)
Contact finish - matingGold, GXT™
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

8-Pin Dual-Row, 0.100" Pitch — Right-Angle Board Edge Fit

The 76345-804-08LF: Contact finish is 15µin GXT gold over the mating area — GXT is Amphenol's enhanced gold alloy, rated for higher mating cycle endurance than standard gold flash. For a header that may see repeated board-to-board disconnects during test or field service, this plating holds contact resistance stable longer than a tin-plated alternative.

Unshrouded, Push-Pull, UL94 V-0 Housing

Suitable for low-vibration environments or where the connector pair is secured by a secondary mechanical clamp.
