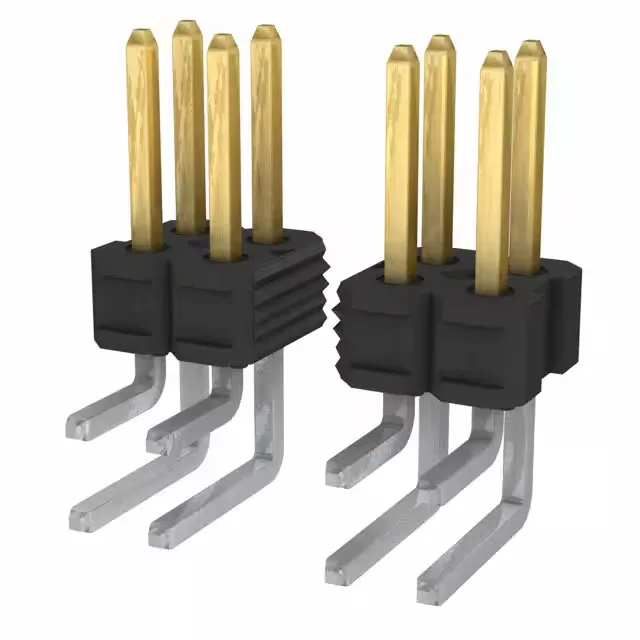

Amphenol ICC (FCI) BergStik unshrouded header, 72 positions, 0.100" (2.54mm) pitch, dual-row, right-angle through-hole, male pin, 30 µinch gold GXT plating, UL94 V-0, Bulk.
76350-103-72LF Amphenol ICC BergStik Header — 72 Pos
MPN76350-103-72LF
Active
Amphenol ICC (FCI) BergStik unshrouded header, 72 positions, 0.100" (2.54mm) pitch, dual-row, right-angle through-hole, male pin, 30 µinch gold GXT plating, UL94 V-0, Bulk.
$9.0608Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 72 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Where can I buy 76350-103-72LF and what is the lead time?
76350-103-72LF is an active Amphenol ICC (FCI) BergStik header. No stock-holding claim is made — each order is quoted individually.
What is the pitch of 76350-103-72LF?
The mating pitch is 0.100" (2.54mm), and the row spacing is also 0.100" (2.54mm). This is the standard BergStik grid — footprint-compatible with any 0.100" pitch dual-row receptacle.
