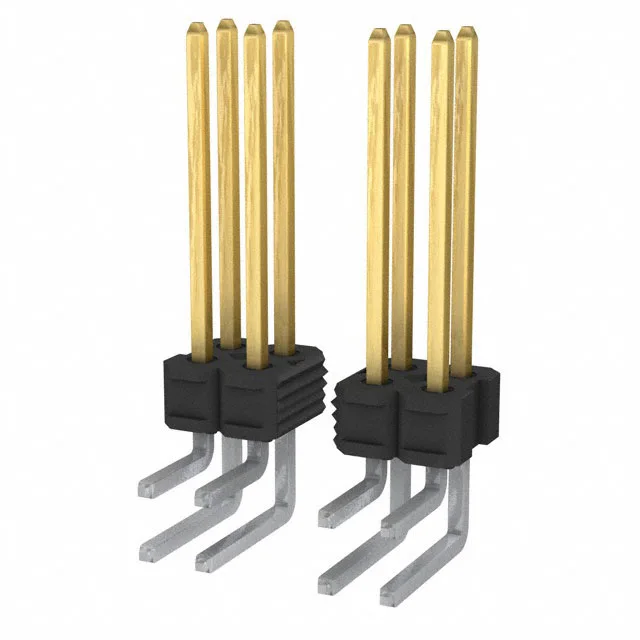

Amphenol ICC (FCI) BERGSTIK® header, order code 76350-120-22LF, 22 positions, dual row, 0.100" (2.54mm) pitch, gold GXT™ plating 30.0µin on mating contact, through-hole right-angle, solder termination.
Amphenol ICC BERGSTIK 76350-120-22LF Header, 22-Pos 2.54mm
MPN76350-120-22LF
Active
Amphenol ICC (FCI) BERGSTIK® header, order code 76350-120-22LF, 22 positions, dual row, 0.100" (2.54mm) pitch, gold GXT™ plating 30.0µin on mating contact, through-hole right-angle, solder termination.
$5.4734Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 22 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.127\" (3.23mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.512\" (13.00mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Where can I buy 76350-120-22LF and how do I get a price?
Order 76350-120-22LF through the distributor listing.
What compliance documentation does Amphenol ICC (FCI) provide for 76350-120-22LF?
RoHS and REACH compliance documentation is available from the manufacturer datasheet.
