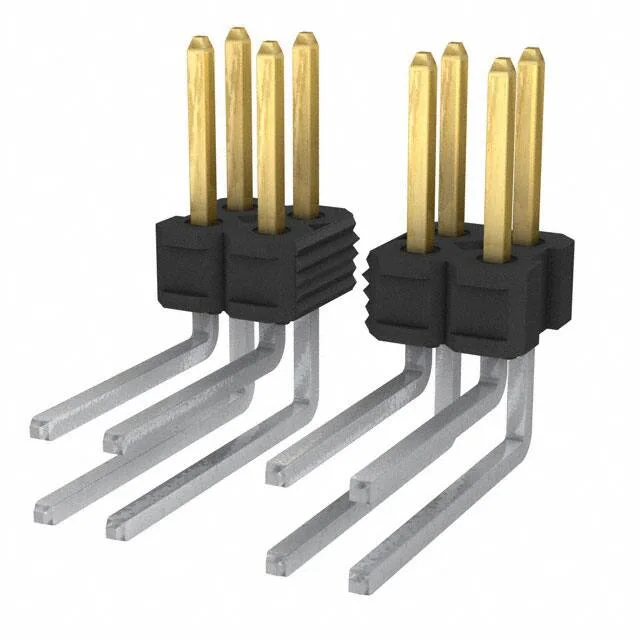

Amphenol ICC FCI BERGSTIK® header, order code 76350-814-10LF, 10 positions, dual row, 0.100" (2.54mm) pitch, unshrouded, through-hole right-angle, solder termination, gold GXT™ mating contacts.
76350-814-10LF Amphenol ICC FCI BERGSTIK Header, 10 Pos
MPN76350-814-10LF
Active
Amphenol ICC FCI BERGSTIK® header, order code 76350-814-10LF, 10 positions, dual row, 0.100" (2.54mm) pitch, unshrouded, through-hole right-angle, solder termination, gold GXT™ mating contacts.
$0.9638Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.305\" (7.75mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.229\" (5.82mm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
How do I get current pricing and availability for 76350-814-10LF?
Pricing and stock are confirmed at RFQ against the BOM quantity. Submit a request through the distributor's sales channel for current lead time and volume pricing.
