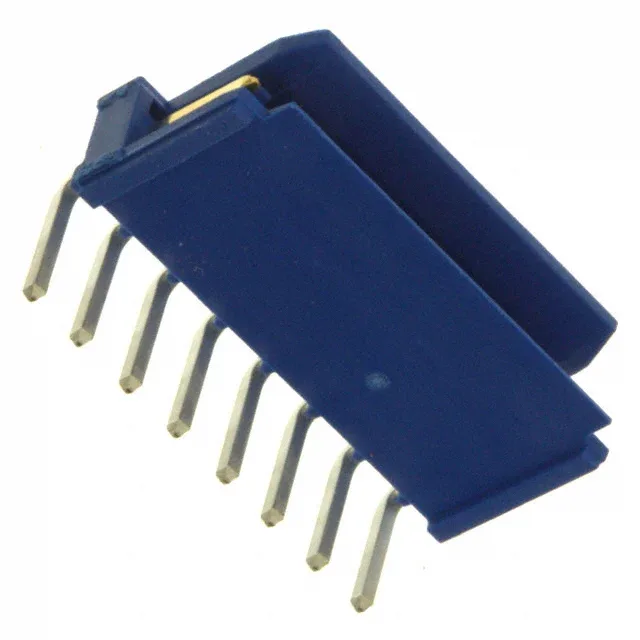

76382-308LF — Amphenol product photo
Amphenol

76382-308LF Dubox™ Header 8 Pos 2.54mm R/A Friction Lock

MPN76382-308LF
Active

Amphenol ICC (FCI) Dubox™, 8 Position, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Shrouded - 4 Wall, Friction Lock, Male Pin, Gold GXT™ Mating, 3A, UL94 V-0, -40°C~125°C

$1.4500Ref. price · indicative, final on quote
76382-308LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

76382-308LF Technical Specifications
ParameterValue
SeriesDubox™
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typeFriction Lock
Current rating3A
Operating temperature-40°C~125°C
Contact materialPhosphor Bronze
Insulation colorBlue
Insulation height0.209\" (5.30mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions8
Contact finish - postTin
Contact length - post0.134\" (3.40mm)
Contact finish - matingGold, GXT™
Contact length - mating0.197\" (5.00mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

8-Pin Right-Angle Dubox™ Header with Friction Lock

Right-Angle Routing and Board Fit

Insulation height is 0.209" (5.30 mm) above the board surface. The blue polyester glass-filled housing provides visual identification against other headers on the same board.

The base product number is 76382; the -308LF suffix designates the 8-position, right-angle, friction lock variant with gold GXT™ plating. Peer variants include 76382-307LF (7 positions), 76382-309LF (9 positions), and 76382-312LF (12 positions) — all sharing the same pitch, plating, and locking feature.

Frequently asked questions

Is 76382-308LF RoHS compliant?

Yes, 76382-308LF is RoHS compliant per the lifecycle record.

What is the difference between 76382-308LF and 76382-309LF?

The only difference is position count: 76382-308LF has 8 positions; 76382-309LF has 9 positions. All other specs — pitch, plating, locking, orientation, current rating — are identical.
