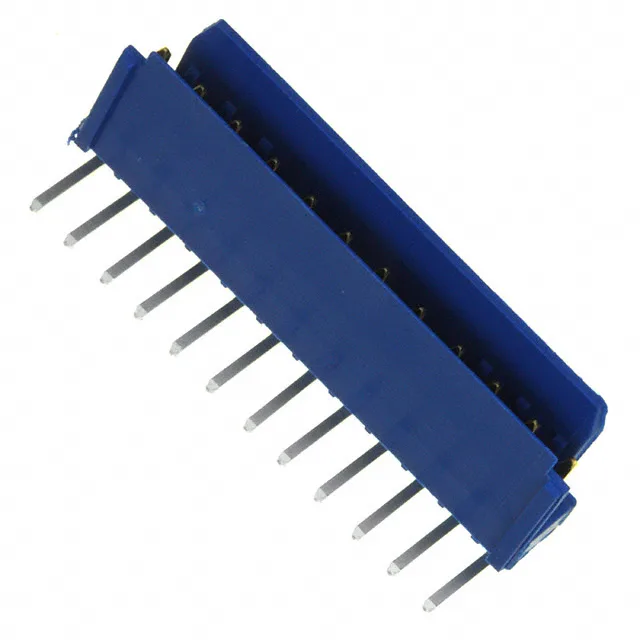

Amphenol ICC (FCI) Dubox™ 76382-312LF, 12-position single-row male pin header, 0.100" (2.54mm) pitch, right-angle through-hole, shrouded 4-wall, friction lock, 3 A, gold GXT™ mating finish, UL94 V-0, RoHS.
76382-312LF Amphenol ICC (FCI) Dubox™ Header 12 Pos 2.54mm
MPN76382-312LF
Active
Amphenol ICC (FCI) Dubox™ 76382-312LF, 12-position single-row male pin header, 0.100" (2.54mm) pitch, right-angle through-hole, shrouded 4-wall, friction lock, 3 A, gold GXT™ mating finish, UL94 V-0, RoHS.
$2.2700Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesDubox™
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Dubox™ |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Current rating | 3A |
| Operating temperature | -40°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.209\" (5.30mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.197\" (5.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the closest functional second-source to 76382-312LF?
The 76382-314LF is the 14-position sibling in the same Dubox™ series, with identical pitch, current rating, plating, and friction lock. For a 12-position BOM, the 76382-312LF is the direct fit.
What is the mating connector for 76382-312LF?
This header mates with a Dubox™ receptacle housing that accepts the corresponding crimp terminals. The friction lock engages with the receptacle's locking ramp for a vibration-resistant connection.
