Amphenol ICC (FCI) Dubox™ series, 76382-314LF, 14-position single-row shrouded header, 0.100" (2.54mm) pitch, through-hole right-angle, gold GXT™ mating finish, 3A, -40°C~125°C.
| Parameter | Value |
|---|---|
| Series | Dubox™ |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Current rating | 3A |
| Operating temperature | -40°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |

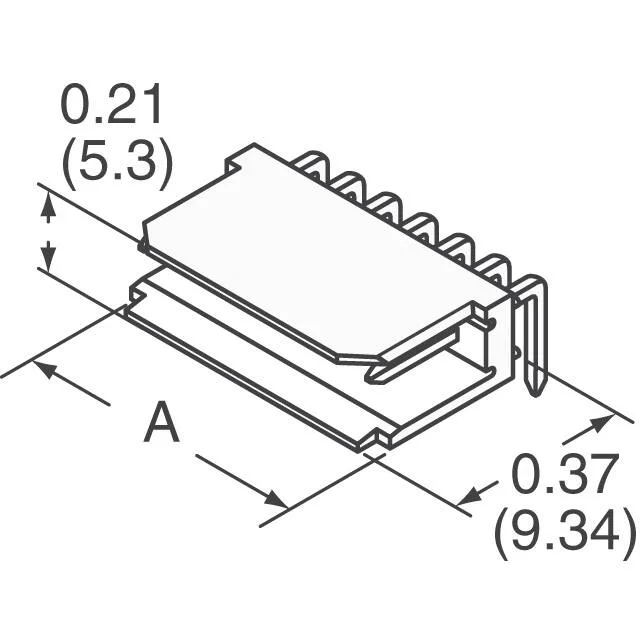

| Insulation height | 0.209\" (5.30mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.197\" (5.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Phosphor bronze contact material provides good spring retention and corrosion resistance in the mated interface.
The connector is RoHS compliant.
The 5.00mm mating pin length and 3.40mm solder-tail length define the board-to-cable stack height and the through-hole depth. Single-row, 14 positions all loaded.
Yes, 76382-314LF is RoHS compliant per the manufacturer's listing.
