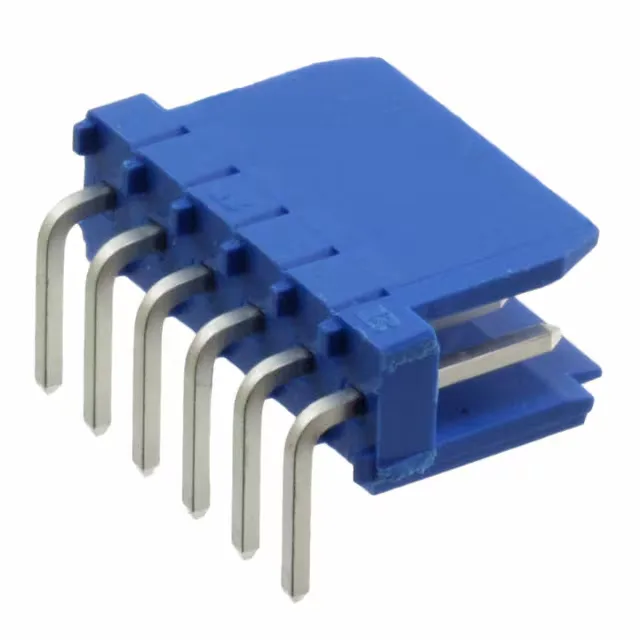

Amphenol ICC (FCI) Dubox™ series, 76382-406LF, board-to-cable/wire header, 6 positions, single row, 0.100" (2.54 mm) pitch, right-angle through-hole, shrouded 4-wall, friction lock, tin-plated contacts, 3 A, UL94 V-0.
76382-406LF Amphenol ICC Dubox Header 6 Pos 2.54mm Right
MPN76382-406LF
Active
Amphenol ICC (FCI) Dubox™ series, 76382-406LF, board-to-cable/wire header, 6 positions, single row, 0.100" (2.54 mm) pitch, right-angle through-hole, shrouded 4-wall, friction lock, tin-plated contacts, 3 A, UL94 V-0.
$1.1300Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesDubox™
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Dubox™ |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Current rating | 3A |
| Operating temperature | -40°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.209\" (5.30mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.197\" (5.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
Product details
Frequently asked questions
What is the closest functional alternative to 76382-406LF?
The closest sibling is the 76382-405LF, which is identical except for having 5 positions instead of 6. Both share the same Dubox series, 0.100" pitch, right-angle through-hole mounting, friction lock, and tin-plated contacts. For a 6-position requirement, the 76382-406LF is the direct fit.
What is the pitch of 76382-406LF?
The mating pitch is 0.100" (2.54 mm).
