Through-hole right-angle with friction lock

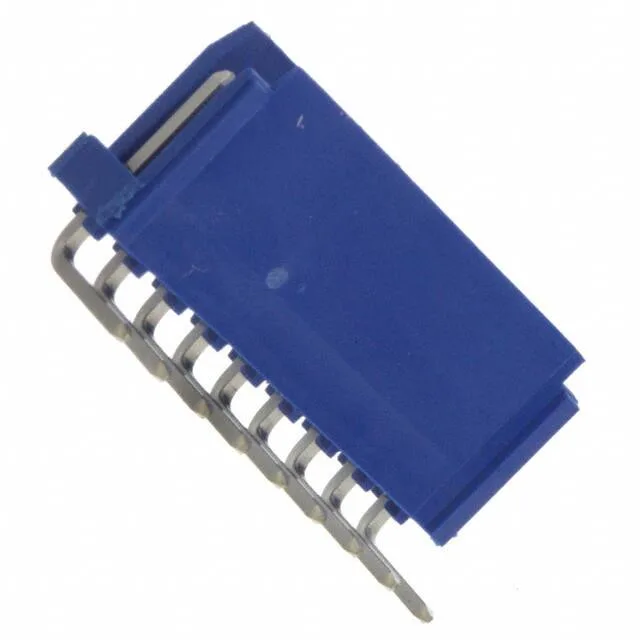

The 76382-409LF: Mounting through-hole right-angle, the shrouded 4-wall housing carries a friction lock for retention against cable pull, rated 3A per contact with tin-plated mating surfaces.
Amphenol ICC (FCI) Dubox header, order code 76382-409LF, 9 positions, single row, 0.100" (2.54mm) pitch, shrouded - 4 wall, tin-plated mating contacts, through-hole right-angle, solder termination.
$1.3700Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | Dubox™ |
| Gender | Male Pin |
| Mounting type | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Current rating | 3A |
| Operating temperature | -40°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.209\" (5.30mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 9 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.197\" (5.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
Product details
Frequently asked questions
What compliance documentation is available for 76382-409LF?
Amphenol ICC (FCI) provides RoHS and REACH compliance data for the 76382-409LF; the housing is rated UL94 V-0. The datasheet carries the full material and regulatory declarations.
