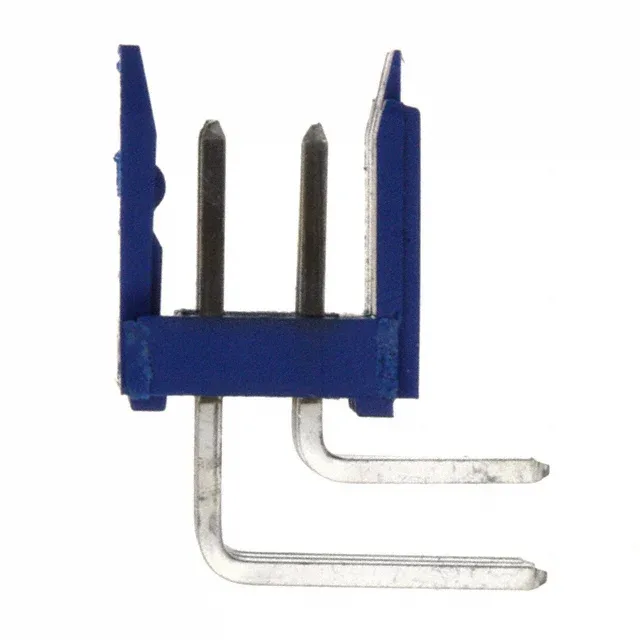

Amphenol ICC (FCI) Dubox™, 6-position, 0.100" (2.54 mm) pitch, right-angle through-hole header, male pin, shrouded 2-wall, friction lock, gold GXT™ mating finish, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Dubox™ |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Current rating | 3A |
| Operating temperature | -40°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.307\" (7.80mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.154\" (3.91mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.197\" (5.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 76383-303LF: A shrouded 2-wall design with a friction lock keeps the mating receptacle seated under moderate vibration and prevents accidental disconnection during handling.
All 6 positions are loaded, so no blank positions need to be accounted for in the BOM or layout.
The mating pitch is 0.100" (2.54 mm), with the same 0.100" row spacing, matching standard 0.1" grid layouts.
Yes, this header is RoHS Compliant per the manufacturer's listing.
Yes, it has a friction lock integrated into the shrouded 2-wall housing to retain the mating receptacle.
