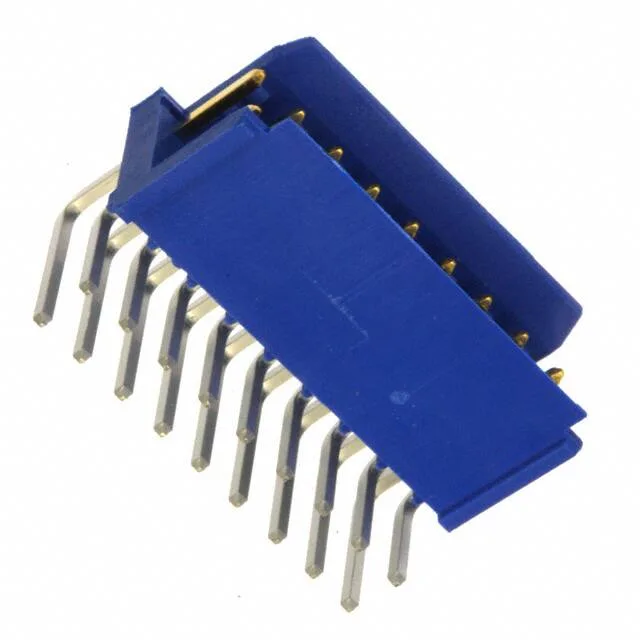

76383-309LF — Amphenol product photo
Amphenol

76383-309LF Amphenol ICC Dubox™ 18-Pin Right-Angle Header

MPN76383-309LF
Active

Amphenol ICC (FCI) Dubox™ series, 76383-309LF, shrouded 2-wall header, 18 circuits, 0.100" (2.54mm) pitch, right-angle through-hole, male pin, GXT gold mating finish, friction lock, UL94 V-0.

$2.8800Ref. price · indicative, final on quote
76383-309LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

76383-309LF Technical Specifications
ParameterValue
SeriesDubox™
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typeFriction Lock
Current rating3A
Operating temperature-40°C~125°C
Contact materialPhosphor Bronze
Insulation colorBlue
Insulation height0.307\" (7.80mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube
ShroudingShrouded - 2 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions18
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.154\" (3.91mm)
Contact finish - matingGold, GXT™
Contact length - mating0.197\" (5.00mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

18-Pin Right-Angle Header with Friction Lock

The 76383-309LF is an 18-position, dual-row, shrouded header from Amphenol ICC's Dubox series, designed for board-to-cable/wire interconnect. A friction lock on the shroud keeps the mating half engaged under moderate vibration, a step up from unshrouded headers that rely solely on pin tension.

RoHS compliant per current directive; no conflict minerals or restricted substance flags on the material declaration. Availability and current pricing confirmed at quote time through our multi-source supply chain — no stock-holding claim, sourced per RFQ.

This header mates with a Dubox series receptacle housing (e.g., 76383-xxxLF series) that accepts 20-24 AWG crimp terminals. The friction lock engages with the corresponding latch on the receptacle shroud.

Frequently asked questions

Is the 76383-309LF obsolete or active?

Determines long-term availability for production and repairs.

What is the mating connector part number for 76383-309LF?

Essential for system integration and ensuring proper connection.

How much does 76383-309LF cost and where is it in stock?

Directly impacts procurement decisions and budget planning.

What are the exact dimensions and pinout of 76383-309LF?

Critical for PCB layout and mechanical fitting in design phase.

Are there any direct equivalents or replacements for 76383-309LF?

Supports second-sourcing and alternative component selection.

Is the 76383-309LF suitable for high-vibration applications?

Friction lock feature suggests reliability but need confirmation for harsh environments.
