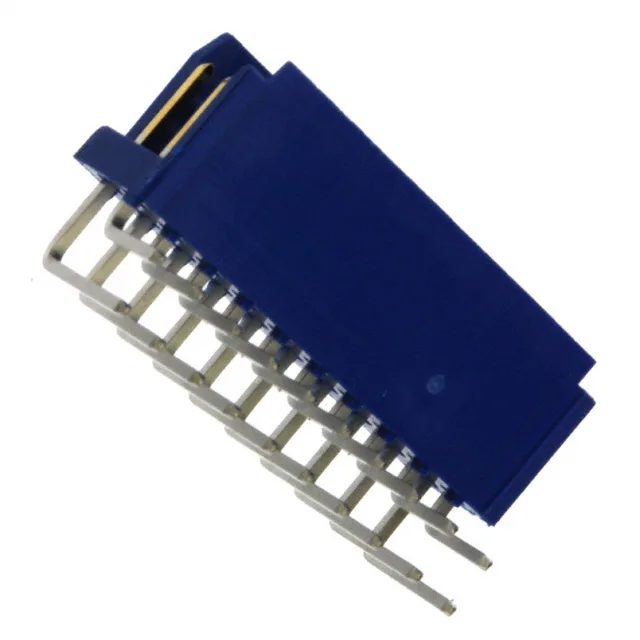

Amphenol ICC (FCI) Dubox header, order code 76383-310LF, 20 positions, dual row, 0.100" (2.54mm) pitch, 3 A, gold GXT mating contacts, through-hole right-angle, solder termination, friction lock.
| Parameter | Value |
|---|---|
| Series | Dubox™ |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Current rating | 3A |
| Operating temperature | -40°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.307\" (7.80mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tube |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.154\" (3.91mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.197\" (5.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 76383-310LF is the 20-circuit member of Amphenol ICC (FCI)'s Dubox header line, a board-to-cable/wire shrouded header with a 2-wall shroud and friction lock for positive retention. It carries gold GXT mating contacts rated 3 A, mounts through-hole right-angle, and mates with the matching Dubox receptacle housing.
RoHS and REACH compliance documentation is available from the manufacturer upon request.
