26-Position Right-Angle Header for Board-to-Cable/Wire

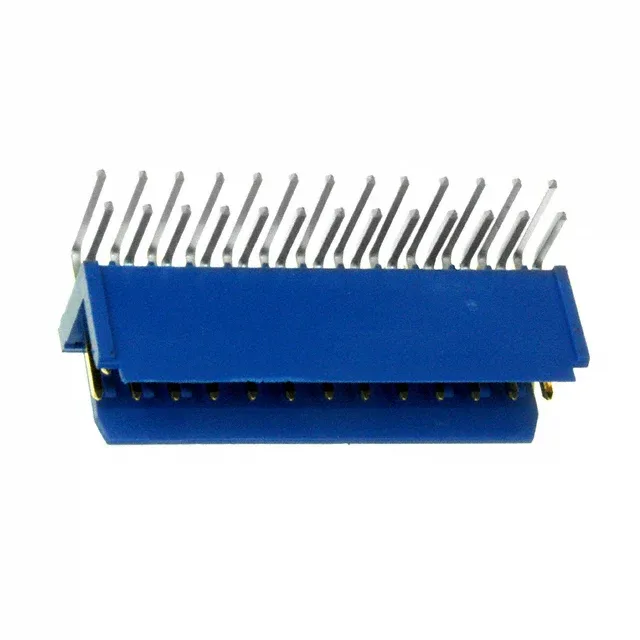

The 76383-313LF: The friction lock on the shroud mates with a complementary receptacle housing to hold the pair together under vibration — no secondary hardware needed. All 26 positions are loaded, so the BOM position count matches one-to-one with the mating half.
Active Production and Sourcing Status
It is RoHS compliant.
Mating Half and Termination Notes
