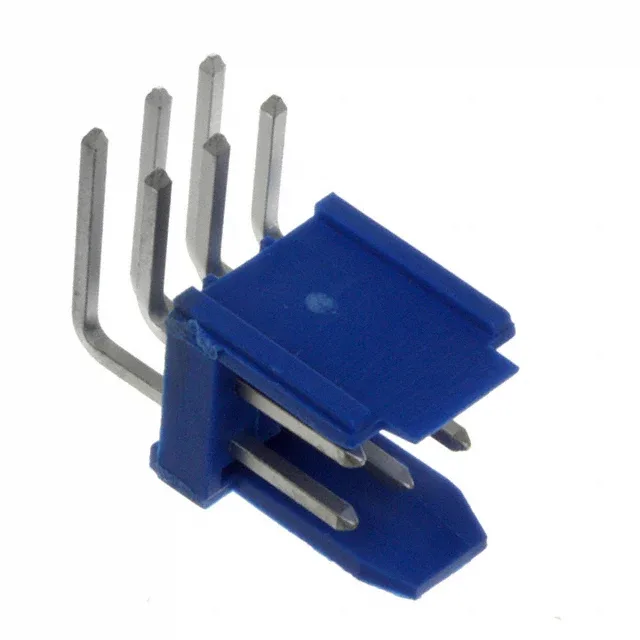

Amphenol ICC (FCI) Dubox™, 76383-403LF, Board to Cable/Wire, 6 Positions, 2 Rows, 0.100" (2.54 mm) Pitch, Through Hole, Right Angle, Tin Contacts, Friction Lock, UL94 V-0
| Parameter | Value |
|---|---|
| Series | Dubox™ |
| Gender | Male Pin |
| Mounting type | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Current rating | 3A |
| Operating temperature | -40°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.307\" (7.80mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.154\" (3.91mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.197\" (5.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
Tin is a good fit for moderate-cycle, low-cost applications; for higher mating-cycle duty, the gold-plated sibling 76383-303LF is available.
At 6 positions, this header sits between the 4-position 76383-402LF and the 8-position 76383-404LF in the same Dubox™ right-angle, tin-contact family. The tin finish on the 76383-403LF is adequate for occasional reconnects in a benign environment.
The 76383-403LF is a shrouded header with a friction lock. The Dubox™ series includes several receptacle housings and terminal options for wire-to-board connections.
Yes, the 76383-403LF is RoHS Compliant per the manufacturer listing.
