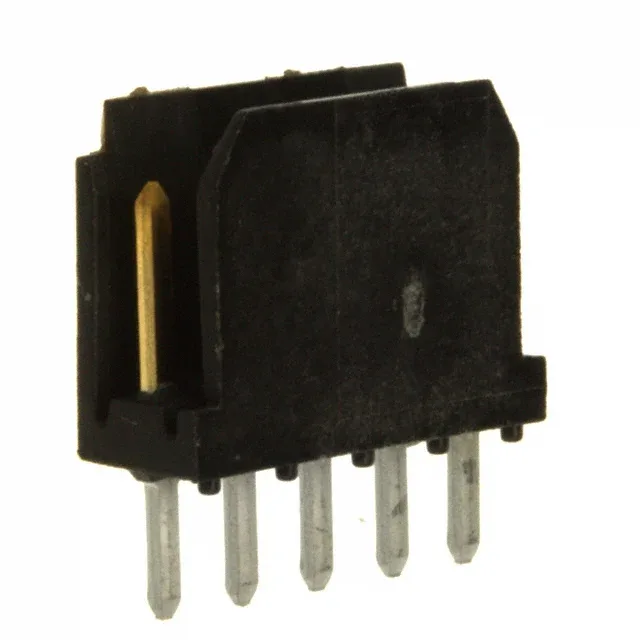

76384-305LF — Amphenol product photo
Amphenol

76384-305LF 5 Pos 2.54mm Pitch Shrouded TH

MPN76384-305LF
Active

Amphenol ICC (FCI) Dubox™ series, 76384-305LF, Board to Cable/Wire header, 5 circuits, single row, 0.100" (2.54mm) pitch, shrouded 2-wall, through-hole solder termination, male pin, friction lock, 3 A, gold GXT™ mating finish, UL94 V-0.

$0.8500Ref. price · indicative, final on quote
76384-305LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

76384-305LF Technical Specifications
ParameterValue
SeriesDubox™
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Current rating3A
Operating temperature-40°C~125°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.368\" (9.35mm)
Insulation materialThermoplastic, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 2 Wall
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions5
Contact finish - postTin
Contact length - post0.134\" (3.40mm)
Overall contact length0.411\" (10.44mm)
Contact finish - matingGold, GXT™
Contact length - mating0.197\" (5.00mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board Fit and Contact Specs

The 76384-305LF: The through-hole termination gives a solid mechanical anchor for the solder joint, and the 3 A per-contact rating covers most signal-level loads without derating at room ambient.

Shrouded Housing and Locking

The 76384 series offers the same single-row, 2.54mm pitch, shrouded design in 3, 4, 5, and 6 positions. The 76384-305LF (5 positions) sits between the 4-position 76384-304LF and the 6-position 76384-306LF — all share identical pin length, plating, and current rating, so swapping positions within the series requires no board layout change beyond the footprint length.

Frequently asked questions

What is the pitch and position count of 76384-305LF?

Pitch is 0.100" (2.54mm) and it has 5 positions in a single row. All positions are loaded.

Is 76384-305LF a male or female connector?

It is a male pin header (male pin, square contact shape). The mating side uses gold GXT™ plating.

What is the closest functional alternative to 76384-305LF?

The 6-position 76384-306LF is the next step up in the same series — same pitch, plating, current rating, and shrouded design. The 4-position 76384-304LF is the next step down.

Where can I buy 76384-305LF with stock?

Availability and current pricing confirmed at quote time.
