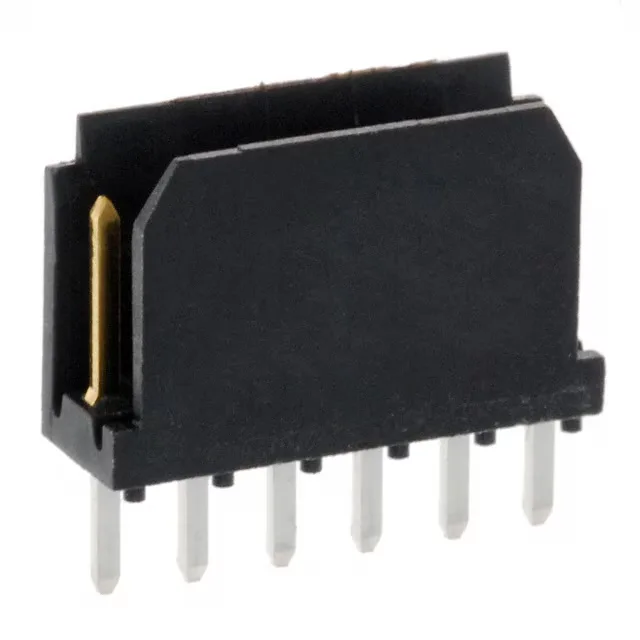

76384-306LF — Amphenol product photo
Amphenol

76384-306LF Amphenol ICC Dubox™ Header 6 Pos 2.54mm Pitch

MPN76384-306LF
Active

Amphenol ICC (FCI) Dubox™, 76384-306LF, Header, Board to Cable/Wire, 6 Positions, 0.100" (2.54mm) Pitch, Through Hole, Solder, Shrouded - 2 Wall, Friction Lock, Gold GXT™ Mating, Tin Post, 3A, -40°C~125°C, UL94 V-0.

$1.0900Ref. price · indicative, final on quote
76384-306LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

76384-306LF Technical Specifications
ParameterValue
SeriesDubox™
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Current rating3A
Operating temperature-40°C~125°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.368\" (9.35mm)
Insulation materialThermoplastic, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 2 Wall
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions6
Contact finish - postTin
Contact length - post0.134\" (3.40mm)
Overall contact length0.411\" (10.44mm)
Contact finish - matingGold, GXT™
Contact length - mating0.197\" (5.00mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

6-Pin Dubox™ Header with Friction Lock

The 76384-306LF: It mates with the corresponding Dubox™ receptacle to form a board-to-cable/wire connection.

Position Count Comparison with Siblings

Within the same Dubox™ series and identical footprint, the 76384-306LF carries 6 positions versus the 5-position 76384-305LF and the 4-position 76384-304LF. For a BOM that calls for 6 positions, this is the direct fit; the 5-position variant is a fallback only if a signal line can be omitted.

The 0.368" (9.35mm) insulation height leaves clearance for mating receptacle housings.
