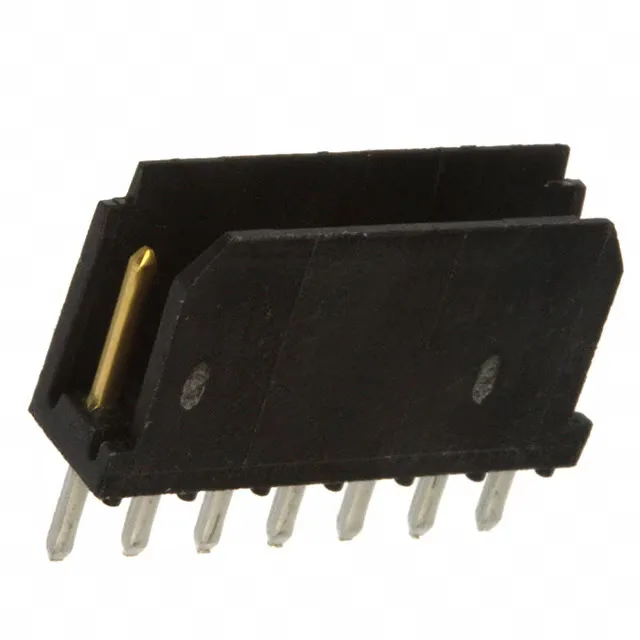

76384-307LF Amphenol ICC Dubox™ Header, 7 Pos, 2.54mm Pitch

MPN76384-307LF
Active

Amphenol ICC (FCI) Dubox™ 76384-307LF, Board to Cable/Wire Header, 7 Positions, 0.100" (2.54mm) Pitch, Single Row, Through Hole, Solder Termination, Shrouded - 2 Wall, Friction Lock, Gold GXT™ Mating Finish, 3A, UL94 V-0.

$1.2100Ref. price · indicative, final on quote
76384-307LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

76384-307LF Technical Specifications
ParameterValue
SeriesDubox™
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Current rating3A
Operating temperature-40°C~125°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.368\" (9.35mm)
Insulation materialThermoplastic, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube
ShroudingShrouded - 2 Wall
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions7
Contact finish - postTin
Contact length - post0.134\" (3.40mm)
Overall contact length0.411\" (10.44mm)
Contact finish - matingGold, GXT™
Contact length - mating0.197\" (5.00mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

7-Position Dubox™ Header with Friction Lock

The mating contacts are finished with 30.0 µinch (0.76µm) of GXT™ gold over nickel — a hard gold alloy that withstands repeated mating cycles without exposing the base copper.

Through-hole mounting with a 0.134" (3.40mm) solder tail — the post length is long enough for a standard 1.6mm PCB but short enough to keep the bottom-side keep-out zone tight. Insulation height of 0.368" (9.35mm) sets the z-height above the board — check clearance against adjacent components or enclosure lids.
