Comparing Position Counts in the Dubox™ Series
Within the Dubox™ single-row, friction-lock, 0.100" pitch family, the 76384-308LF (8 positions) sits between the 7-position 76384-307LF and the 9-position 76384-309LF.

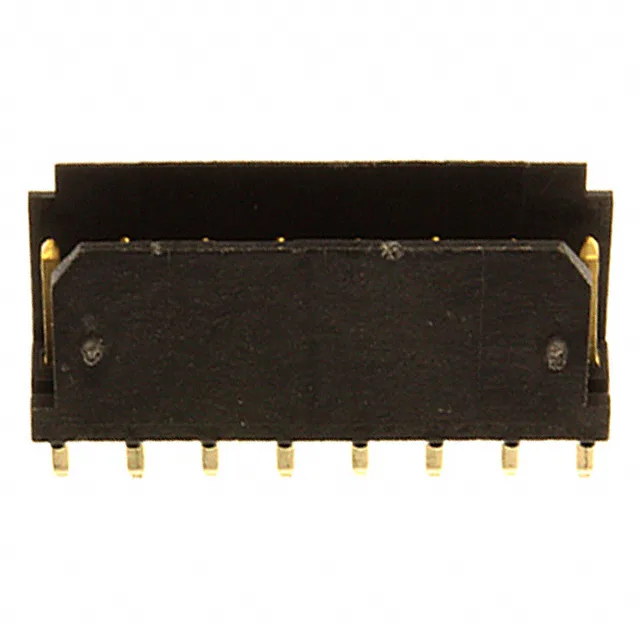

Amphenol ICC (FCI) Dubox™ series, 76384-308LF, board-to-cable/wire header, 8 circuits, 0.100" (2.54mm) pitch, single row, through-hole solder termination, shrouded 2-wall with friction lock, gold GXT™ mating finish.
$1.4700Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | Dubox™ |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Current rating | 3A |
| Operating temperature | -40°C~125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.368\" (9.35mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Overall contact length | 0.411\" (10.44mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.197\" (5.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the closest functional second-source to the 76384-308LF?
The closest functional alternative within the same Dubox™ series is the 9-position 76384-309LF. It shares the same pitch, current rating, plating, and locking mechanism — the only difference is the number of circuits. If your harness requires exactly 8 positions, the 76384-308LF is the direct fit.
