76384-315LF Amphenol ICC (FCI) Dubox™ Header 15POS 2.54mm

MPN76384-315LF
Active

Amphenol ICC (FCI) Dubox™ series, 76384-315LF, single-row through-hole header, 15 positions, 0.100" (2.54mm) pitch, 3A rating, Gold GXT™ mating finish, friction lock fastening.

$1.9100Ref. price · indicative, final on quote
76384-315LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

76384-315LF Technical Specifications
ParameterValue
SeriesDubox™
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Current rating3A
Operating temperature-40°C~125°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.368\" (9.35mm)
Insulation materialThermoplastic, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube
ShroudingShrouded - 2 Wall
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions15
Contact finish - postTin
Contact length - post0.134\" (3.40mm)
Overall contact length0.411\" (10.44mm)
Contact finish - matingGold, GXT™
Contact length - mating0.197\" (5.00mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

15-Position Single-Row Dubox™ Header

The 76384-315LF is a 15-position, single-row, shrouded header from the Dubox™ series by Amphenol ICC (FCI). Rated at 3A per contact, this header suits signal-level interconnects where current draw stays within the housing's thermal limits. A friction lock fastening type keeps the mated pair secure under vibration without requiring a secondary latch — a practical choice for field-serviceable equipment where quick disconnect is valued.

Pitch, Footprint, and Routing

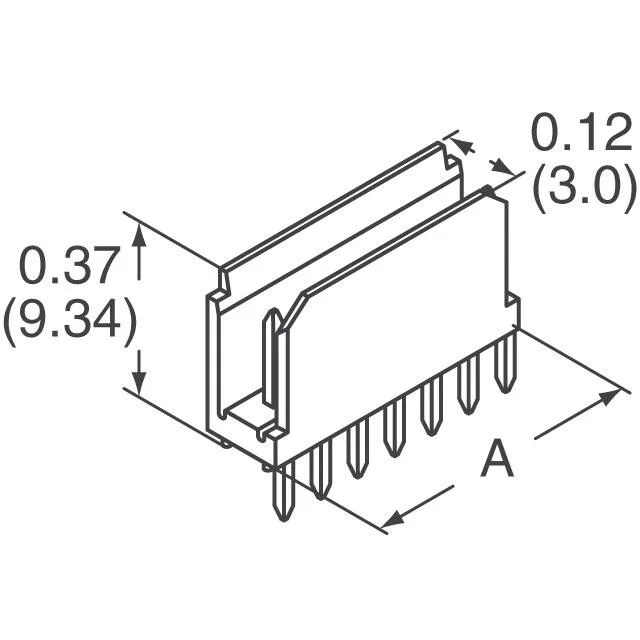

The insulation height of 0.368" (9.35mm) sets the z-height above the board surface; this matters when routing adjacent components or fitting into a tight enclosure.

Mating and Fastening

This shrouded header mates with a Dubox™ receptacle housing (sold separately) that accepts the corresponding crimp terminals. The friction lock engages with a matching ramp on the receptacle, providing positive retention.
