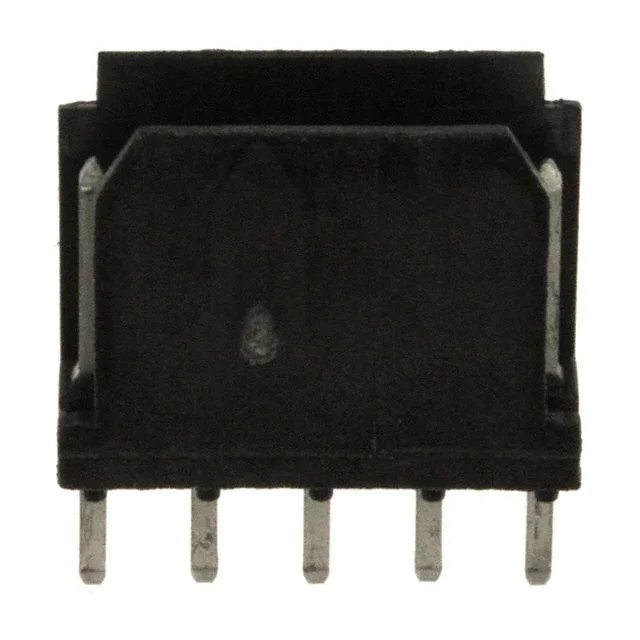

76384-405LF — Amphenol product photo
Amphenol

76384-405LF Amphenol ICC (FCI) Dubox™ Header 5-Pos 2.54mm

MPN76384-405LF
Active

Amphenol ICC (FCI) Dubox™ 76384-405LF, 5-position single-row shrouded header, 0.100" (2.54mm) pitch, through-hole solder termination, tin-plated square pins, friction lock, UL94 V-0 black thermoplastic, -40°C to 125°C.

$0.8900Ref. price · indicative, final on quote
76384-405LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

76384-405LF Technical Specifications
ParameterValue
SeriesDubox™
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Current rating3A
Operating temperature-40°C~125°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.368\" (9.35mm)
Insulation materialThermoplastic, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 2 Wall
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions5
Contact finish - postTin
Contact length - post0.134\" (3.40mm)
Overall contact length0.411\" (10.44mm)
Contact finish - matingTin
Contact length - mating0.197\" (5.00mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating78.7µin (2.00µm)

Product details

Tin-Plated Contact Duty

The 76384-405LF: Both the mating face and the solder post carry 78.7 µinch (2.00 µm) tin plating. Tin is cost-effective for moderate reconnect duty — expect about 50 mating cycles before fretting corrosion raises contact resistance. For applications requiring frequent field service, a gold-plated sibling in the Dubox series is a better fit.

The 76384 base number covers a single-row, 0.100" pitch Dubox header family. For a 6-position version with identical plating and lock, the 76384-406LF is a direct sibling.

Frequently asked questions

What is the closest functional alternative to 76384-405LF?

The 76384-406LF is a 6-position version of the same Dubox header — same 0.100" pitch, tin plating, friction lock, and through-hole termination. If the BOM needs one more circuit, it is a drop-in replacement.
