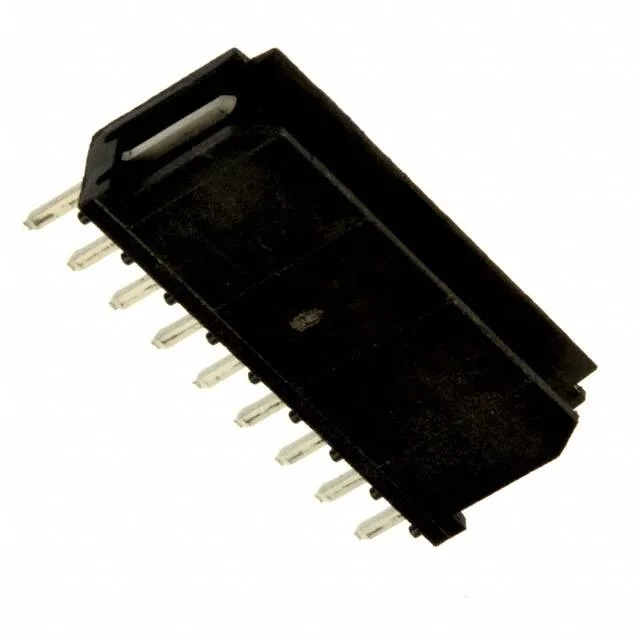

Amphenol ICC (FCI) Dubox™ header, order code 76384-409LF, 9 positions, single row, 0.100" (2.54 mm) pitch, 3 A, tin-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | Dubox™ |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Current rating | 3A |
| Operating temperature | -40°C~125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.368\" (9.35mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tube |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 9 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Overall contact length | 0.411\" (10.44mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.197\" (5.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
The 76384-409LF is the 9-position member of Amphenol ICC's Dubox™ single-row header line, terminated by through-hole solder. It carries tin-plated square pins on a 0.100" (2.54 mm) pitch, rated 3 A per contact, with a friction lock for retention against vibration.
The shrouded 2-wall housing is glass-filled thermoplastic rated UL94 V-0, and the operating temperature spans -40°C to 125°C.
The housing is rated UL94 V-0. RoHS and REACH compliance documentation is provided by Amphenol ICC (FCI) for the Dubox™ series.
