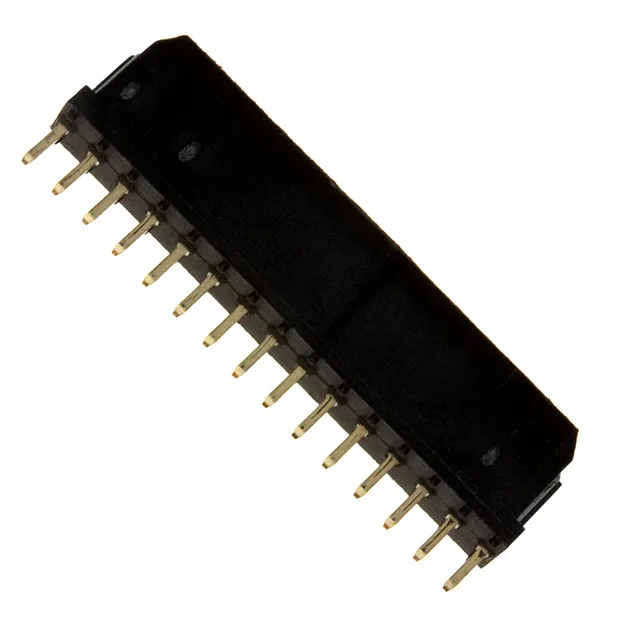

76384-415LF — Amphenol product photo
Amphenol

Amphenol ICC Dubox 76384-415LF Header, 15 Pos, 2.54mm

MPN76384-415LF
Active

Amphenol ICC (FCI) Dubox header, order code 76384-415LF, 15 positions, single row, 0.100" (2.54 mm) pitch, 3 A, tin-plated mating contacts, through-hole, solder termination.

$0.9953Ref. price · indicative, final on quote
76384-415LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

76384-415LF Technical Specifications
ParameterValue
SeriesDubox™
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Current rating3A
Operating temperature-40°C~125°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.368\" (9.35mm)
Insulation materialThermoplastic, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube
ShroudingShrouded - 2 Wall
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions15
Contact finish - postTin
Contact length - post0.134\" (3.40mm)
Overall contact length0.411\" (10.44mm)
Contact finish - matingTin
Contact length - mating0.197\" (5.00mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating78.7µin (2.00µm)

Product details

What this header fits

The 76384-415LF is the 15-position single-row member of the Amphenol ICC (FCI) Dubox shrouded header line, built for board-to-cable/wire connections with a friction lock to hold the mating half.

Tin plating and the friction lock

The 78.7 µin tin mating finish suits moderate mating-cycle duty in equipment where the friction lock keeps the pair engaged under vibration — the 2-wall shroud guides the receptacle into alignment before the lock snaps. Tin-to-tin contacts need a minimum normal force to wipe through surface oxide; the Dubox square-pin geometry delivers that without relying on gold.
