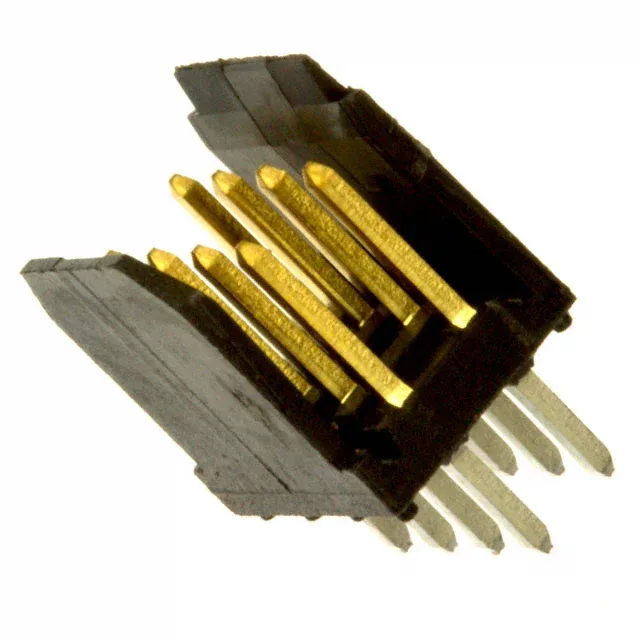

76385-304LF — Amphenol product photo

76385-304LF Amphenol ICC (FCI) Dubox 8-Pin Header, 2.54mm

MPN76385-304LF
Active

Amphenol ICC (FCI) Dubox™ series, 76385-304LF, board-to-cable/wire header, 8 positions, 2.54mm pitch, through hole, shrouded 2-wall, friction lock, male pin, GXT gold mating finish, 3A rating, UL94 V-0.

$1.4900Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

76385-304LF Technical Specifications
ParameterValue
SeriesDubox™
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Current rating3A
Operating temperature-40°C~125°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.368\" (9.35mm)
Insulation materialThermoplastic, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 2 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions8
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.134\" (3.40mm)
Overall contact length0.411\" (10.44mm)
Contact finish - matingGold, GXT™
Contact length - mating0.197\" (5.00mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

The 76385-304LF is an 8-position, 2-row, 2.54mm pitch through-hole header from the Amphenol ICC (FCI) Dubox series.

The closest peer is the 76385-303LF, also an 8-position Dubox header. Gold carries a higher mating cycle rating — if the connector is cycled more than a few dozen times in the field, the gold version is the right call. The 76385-306LF is a 12-position version of the same header — same pitch, same locking, same plating. If the BOM needs more circuits, that's the drop-in with two extra positions per row.

Mates with a Dubox receptacle housing (female) that accepts the matching crimp terminal. The 2-wall shroud on the header side guides the receptacle straight on. Termination is solder — the through-hole pins (0.134" post length) go into the PCB and are wave-soldered. The 2.54mm pitch gives enough room for a standard soldering iron tip or wave solder nozzle.

Frequently asked questions

What is the mating connector for the 76385-304LF?

It mates with a Dubox series receptacle housing (female) that accepts crimp terminals. The friction lock on the header side engages with the matching lock on the receptacle. The 2-wall shroud aligns the pair during mating.
