Amphenol ICC (FCI) Dubox™ series, 34-position, 2-row, shrouded header, 0.100" (2.54mm) pitch, through-hole solder termination, gold GXT™ mating finish, 3A rating, UL94 V-0, RoHS.
| Parameter | Value |
|---|---|
| Series | Dubox™ |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Current rating | 3A |
| Operating temperature | -40°C~125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |

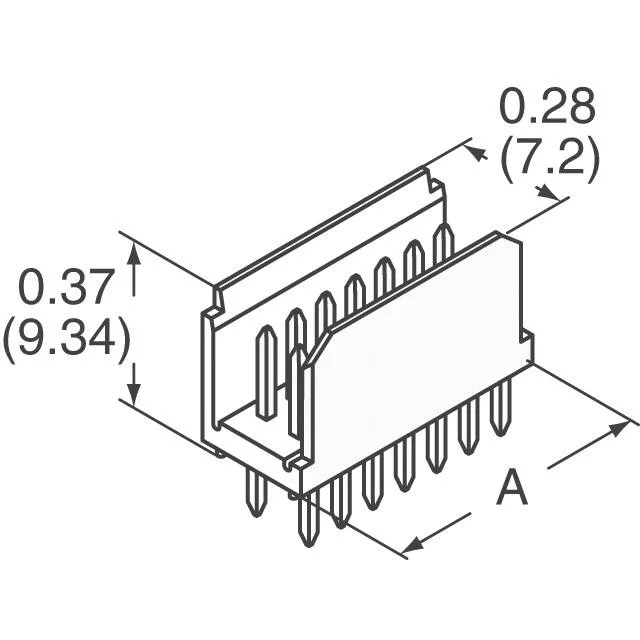

| Insulation height | 0.368\" (9.35mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tube |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 34 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Overall contact length | 0.411\" (10.44mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.197\" (5.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
If it backs out, it's scrap; the lock prevents that in all but the most severe shock environments.
Through-hole termination gives a robust solder joint that handles mechanical strain from the cable assembly. Insulation height of 0.368" (9.35mm) above the PCB leaves room for passives or traces underneath the header body.
It is a 34-position, dual-row header with all positions loaded. The pinout follows the standard 2.54mm grid — rows spaced 0.100" apart. Mating with a Dubox™ receptacle requires aligning the shrouded keying; the friction lock ensures correct orientation.
