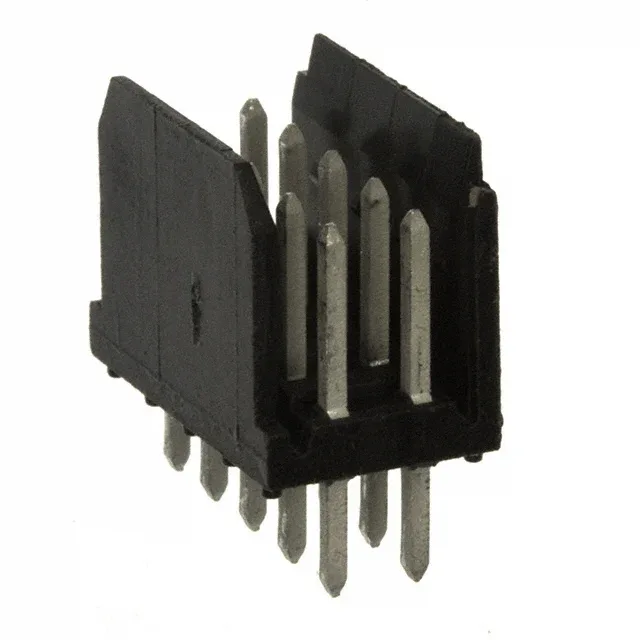

Amphenol ICC (FCI) Dubox™, 76385-405LF, Board to Cable/Wire, 10 Position, 2.54mm Pitch, 3A, Tin, Friction Lock, Through Hole, Shrouded - 2 Wall
| Parameter | Value |
|---|---|
| Series | Dubox™ |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Current rating | 3A |
| Operating temperature | -40°C~125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.368\" (9.35mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Overall contact length | 0.411\" (10.44mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.197\" (5.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
The 76385-405LF: The friction lock mates with a corresponding receptacle housing that has a matching ramp; it provides a tactile click on full engagement.
The base product number 76385 covers the full Dubox™ header family, so any pin-count variant shares the same footprint and mating interface.
The closest equivalent is the 76385-404LF, which is an 8-position version of the same Dubox™ header. It shares the same 2.54mm pitch, 3A rating, tin plating, friction lock, and overall dimensions.
Availability and current pricing confirmed at quote time.
