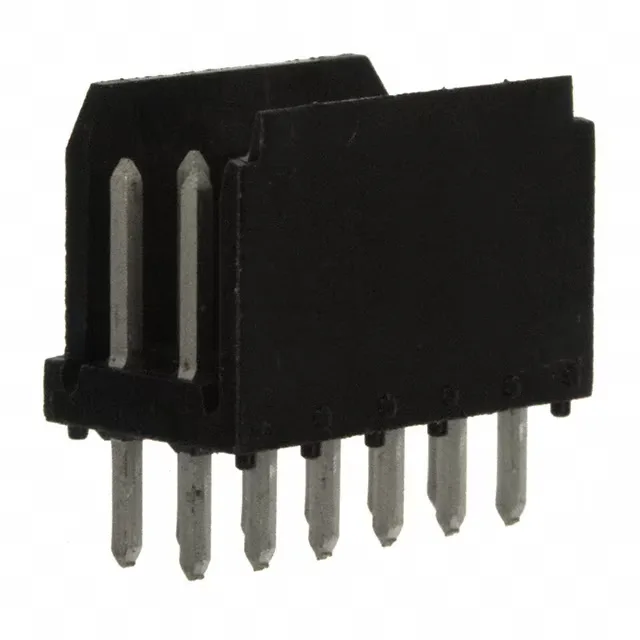

Amphenol ICC (FCI) Dubox header, order code 76385-406LF, 12 positions, dual row, 0.100" (2.54 mm) pitch, 3 A, tin-plated mating contacts, through hole, solder termination, friction lock.
| Parameter | Value |
|---|---|
| Series | Dubox™ |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Current rating | 3A |
| Operating temperature | -40°C~125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.368\" (9.35mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Overall contact length | 0.411\" (10.44mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.197\" (5.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
The 76385-406LF is the 12-circuit member of Amphenol ICC (FCI)'s Dubox shrouded header line, a board-to-cable/wire interconnect with a friction lock for mating retention.
The pitch and footprint are shared across the Dubox series, so the position count is the selection variable.
Both the mating pitch and the row spacing are 0.100" (2.54 mm). The header is a dual-row, 12-position shrouded design with a friction lock.
