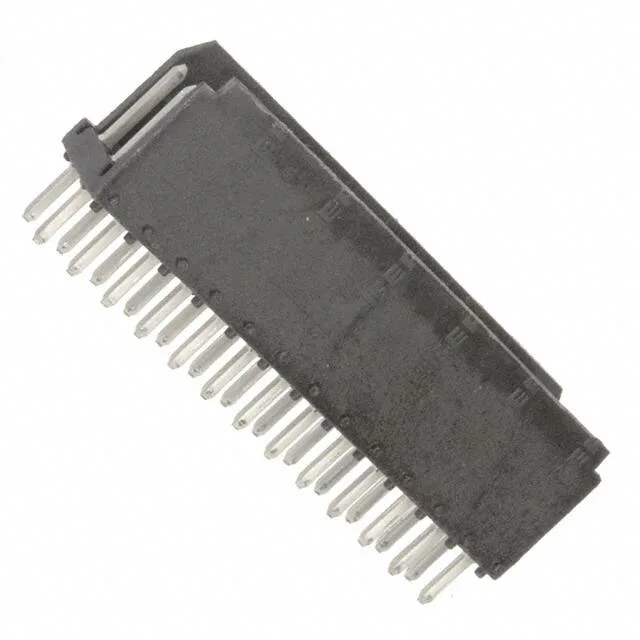

76385-413LF Amphenol ICC Dubox Header, 26 Pos 2.54mm

MPN76385-413LF
Active

Amphenol ICC (FCI) Dubox header, order code 76385-413LF, 26 positions, dual row, 0.100" (2.54mm) pitch, 3 A, tin-plated mating contacts, through-hole, solder termination, shrouded with friction lock.

$1.6815Ref. price · indicative, final on quote
76385-413LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

76385-413LF Technical Specifications
ParameterValue
SeriesDubox™
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Current rating3A
Operating temperature-40°C~125°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.368\" (9.35mm)
Insulation materialThermoplastic, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube
ShroudingShrouded - 2 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions26
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.134\" (3.40mm)
Overall contact length0.411\" (10.44mm)
Contact finish - matingTin
Contact length - mating0.197\" (5.00mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating78.7µin (2.00µm)

Product details

Board-to-wire header with friction lock

The 76385-413LF is the 26-circuit member of Amphenol ICC's Dubox shrouded header line, designed for board-to-cable/wire applications. It carries tin-plated mating contacts rated 3 A per circuit on a 0.100" (2.54mm) pitch, dual-row layout, with a friction lock for retention.

Through-hole termination and mating dimensions

The header terminates via through-hole solder posts 0.134" (3.40mm) long; the mating pin length is 0.197" (5.00mm). The 2-wall shrouded housing with friction lock mates with the corresponding Dubox receptacle, providing keyed alignment and a positive latch.

Frequently asked questions

What is the mating half for this header?

The 76385-413LF mates with a Dubox receptacle housing that accepts the same 0.100" pitch, dual-row layout. The friction lock on the header engages the corresponding latch on the receptacle.
