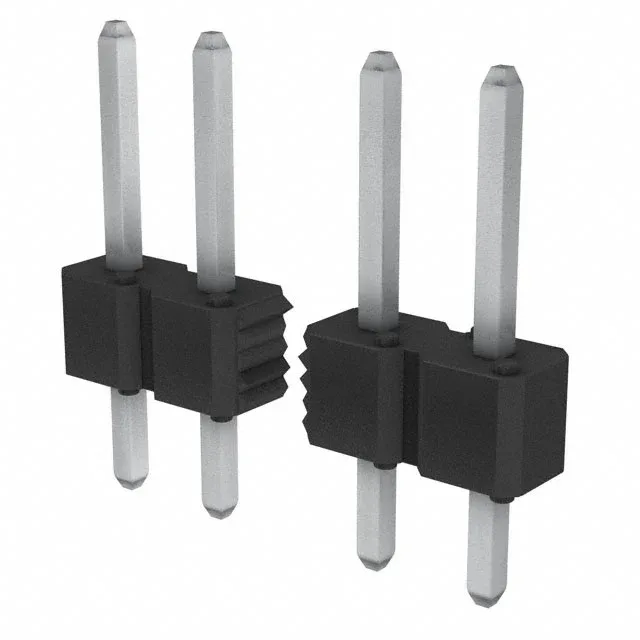

Amphenol ICC (FCI) BERGSTIK® unshrouded header, 36 positions, single row, 0.100" (2.54mm) pitch, through hole, tin-plated phosphor bronze contacts, rated 3 A per contact, UL94 V-0, bulk package.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 36 |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.450\" (11.43mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
The 77311-418-36LF is the bulk-packaged, all-tin-plated 36-position version. The 77311-418-00LF shares the same tin finish and 36-position count but ships in tape and reel, suited for automated pick-and-place. For a low-position-count option, the 77311-483-03LF offers 3 positions in bulk.
The mating pitch is 0.100" (2.54mm). This is the centre-to-centre spacing between adjacent pins, which determines the footprint on the PCB and the mating receptacle requirement.
It is unshrouded — no plastic wall surrounds the pins. This means the header mates with standard IDC or crimp receptacles that have their own alignment features, but offers no polarisation keying to prevent mis-mating.
