Unshrouded header, cuttable pin strip
The 77311-824-00LF is the cuttable 36000-position member of Amphenol's BERGSTIK® unshrouded header line, a single-row pin strip that breaks to any circuit count the board layout requires.

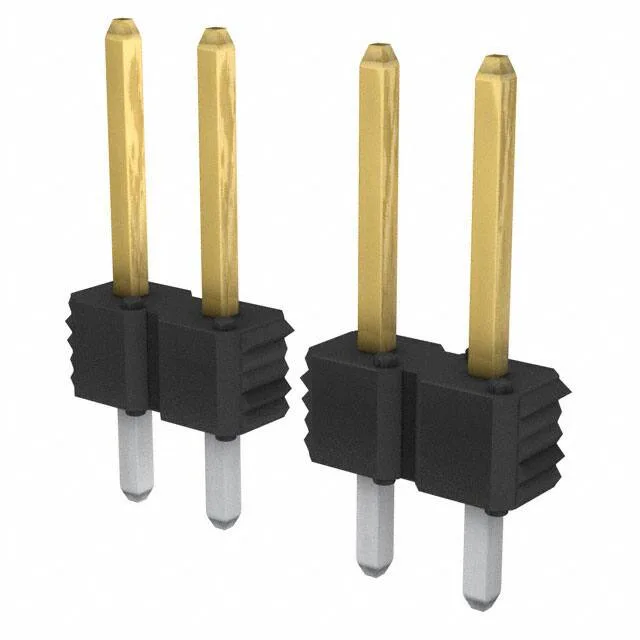

77311-824-00LF BERGSTIK Header, 36k Pos, 2.54mm Pitch
MPN77311-824-00LF
Active
Amphenol BERGSTIK® header, order code 77311-824-00LF, 36000 cuttable positions, single row, 0.100" (2.54mm) pitch, 3 A per contact, gold or GXT™ mating finish, through hole, solder termination.
$0.5200Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tape & Reel (TR) |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 36000, Cuttable |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Overall contact length | 0.480\" (12.19mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.266\" (6.75mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
What compliance documentation is available for 77311-824-00LF?
The housing material is rated UL94 V-0. RoHS and REACH compliance documentation is provided by Amphenol for the BERGSTIK series.
