BERGSTIK® board-to-board header — 4 positions, 0.100" pitch
The 77311-824-04: It mates with matching socket strips for board-to-board stacking and uses a push-pull fastening system. The through-hole solder termination suits hand or wave assembly.
77311-824-04 Amphenol ICC (FCI) BERGSTIK® Header, 4 Pos
MPN77311-824-04
Obsolete

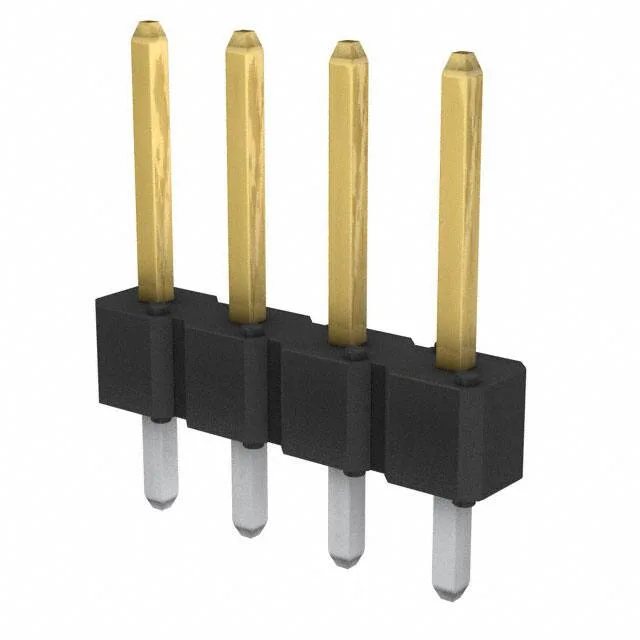

Amphenol ICC (FCI) BERGSTIK® header, order code 77311-824-04, 4 positions, single row, 0.100" (2.54mm) pitch, unshrouded, through-hole, solder termination, gold-plated mating contacts.
$0.7900Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.114\" (2.90mm) |
| Overall contact length | 0.480\" (12.19mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.266\" (6.75mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
How can I check current stock or request a quote for the 77311-824-04?
The 77311-824-04 is an obsolete part. Availability is limited to remaining distributor inventory. Submit an RFQ for current pricing and quantity confirmation.
