Through-hole unshrouded header — 4 circuits, dual row
The 77313-101-04 is a 4-position, dual-row unshrouded header in the BERGSTIK® series. The housing is rated UL94 V-0.
Obsolete — last-time-buy window closed
The 77313-101-04 is marked Obsolete.

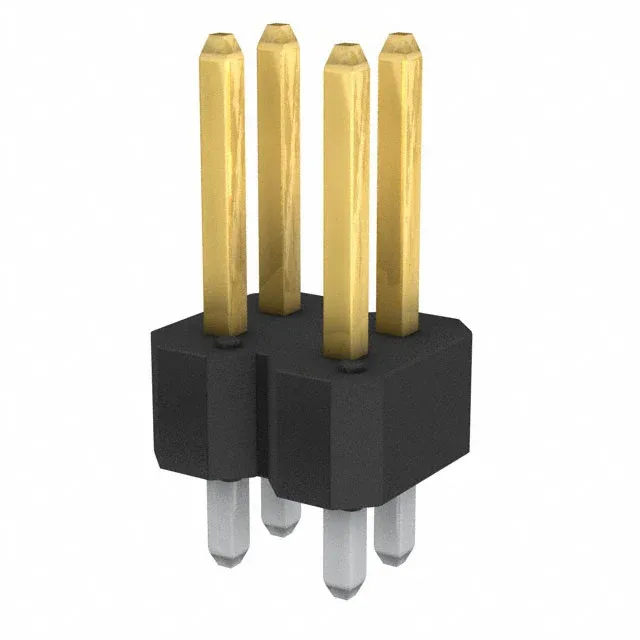

77313-101-04 BERGSTIK Header, 4-Pos, 0.100" Pitch, Obsolete
MPN77313-101-04
Obsolete
Berg BERGSTIK® header, order code 77313-101-04, 4 positions, dual row, 0.100" (2.54mm) pitch, unshrouded, male pin, through-hole, solder termination, gold or GXT™ mating finish.
$0.4456Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.095\" (2.41mm) |
| Overall contact length | 0.425\" (10.80mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is 77313-101-04's listed style and series?
The style is Board to Board or Cable, and the series is BERGSTIK®.
