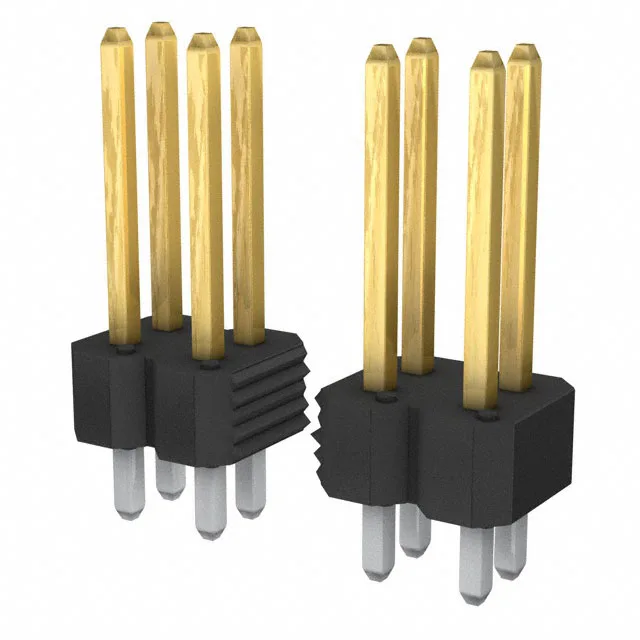

Amphenol ICC (FCI) BERGSTIK® header, order code 77313-115-14LF, 14 positions, dual row, 0.100" (2.54 mm) pitch, 3 A per contact, gold mating finish, through hole, solder termination, unshrouded breakaway.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C ~ 130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.100\" (2.54mm) |
| Overall contact length | 0.535\" (13.59mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.335\" (8.51mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 77313-115-14LF is the 14-circuit member of the Amphenol ICC (FCI) BERGSTIK® unshrouded breakaway header line.
The unshrouded push-pull fastening and breakaway design let the header be snapped to the required circuit count for prototypes or low-volume builds.
The manufacturer provides RoHS and REACH compliance data.
