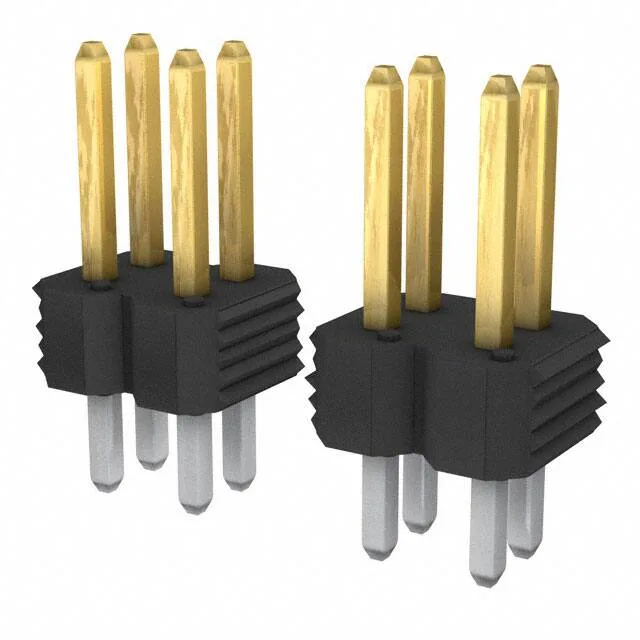

Amphenol ICC BERGSTIK header, breakaway, order code 77313-118-00LF, cuttable 45000 positions, dual row, 0.100" (2.54mm) pitch, 3A per contact, gold or GXT™ mating finish, through-hole solder termination.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 45000, Cuttable |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.450\" (11.43mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 77313-118-00LF is the cuttable-position member of Amphenol ICC's BERGSTIK header line, offered as a continuous strip with 45000 positions that can be broken to the circuit count needed.
The BERGSTIK series uses a continuous pin strip — the 77313-118-00LF ships as a reel of 45000 positions that the assembler snaps to the required circuit count, eliminating the need to stock multiple fixed-position SKUs.
The material flammability rating is UL94 V-0. RoHS and REACH compliance documentation is available from the manufacturer upon request.
