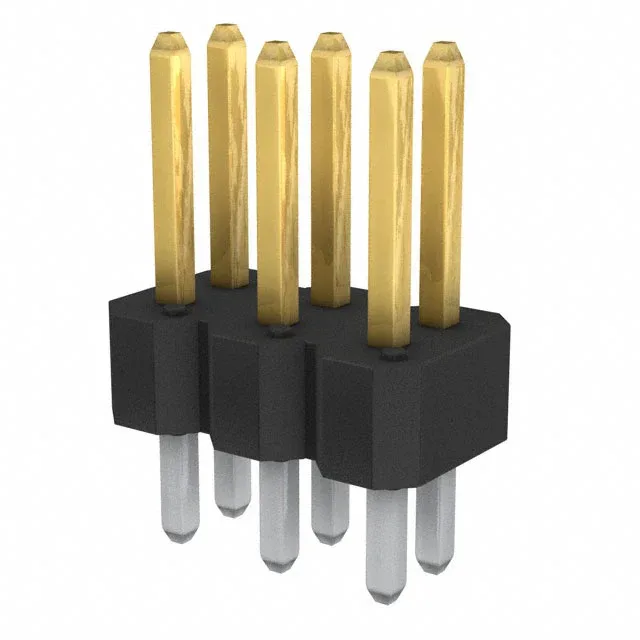

77313-118-06LF — Amphenol product photo
Amphenol

77313-118-06LF Amphenol ICC BERGSTIK® Header 6-Pin 2.54mm

MPN77313-118-06LF
Active

Amphenol ICC (FCI) BERGSTIK® 77313-118-06LF, 6-position unshrouded breakaway header, 0.100" (2.54mm) pitch, dual-row, through-hole solder termination, 30.0µin gold mating finish, rated 3A per contact, -65°C to 130°C, UL94 V-0, RoHS.

$0.4200Ref. price · indicative, final on quote
77313-118-06LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

77313-118-06LF Technical Specifications
ParameterValue
SeriesBERGSTIK®
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader, Breakaway
Fastening typePush-Pull
Current rating3A per Contact
Operating temperature-65°C~130°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions6
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.120\" (3.05mm)
Overall contact length0.450\" (11.43mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

The 77313-118-06LF: The UL94 V-0 thermoplastic housing holds up inside enclosures requiring flame-rated materials.

Position Count and Plating — What the Numbers Mean for the Fit

At 6 positions, this is the smallest dual-row member in the 77313-118-xxLF family. The closest sibling is the 8-position 77313-118-08LF — same pitch, same 30.0µinch gold mating finish, same 3A rating, same 0.450" overall contact length. Tin-post tails keep solder-joint cost down where the board-side finish doesn't need precious metal.

Frequently asked questions

What is the closest functional alternative to 77313-118-06LF?

The 8-position 77313-118-08LF is the nearest sibling — same pitch, same gold plating thickness, same current rating, same overall contact length. If your board has room for two extra positions, it's a drop-in replacement for the 6-position version.
