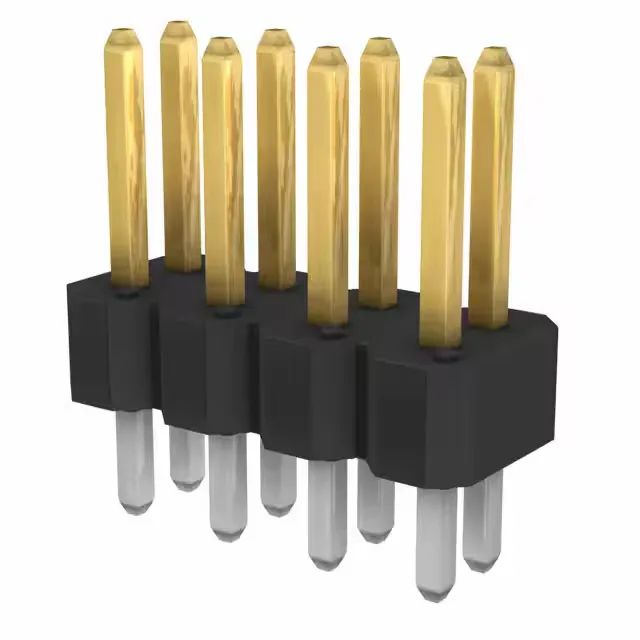

Amphenol ICC (FCI) BERGSTIK® series, 77313-118-08LF, unshrouded through-hole header, 8 positions, dual-row, 0.100" (2.54 mm) pitch, 3 A per contact, gold mating finish, UL94 V-0 black thermoplastic.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.450\" (11.43mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 77313-118-08LF: Submit an RFQ for current availability and lead time; this is not a stocked shelf item.
The 77313-118-08LF sits between the 6-position 77313-118-06LF and the 10-position 77313-118-10LF in the same BERGSTIK® family. If your BOM calls for 8 positions, this is the exact match; the 6- or 10-position siblings are not pin-compatible drop-ins.
Yes, the 77313-118-08LF is listed as RoHS Compliant.
The mating pitch is 0.100" (2.54 mm) and the row spacing is also 0.100" (2.54 mm), matching standard 0.100" grid receptacles.
