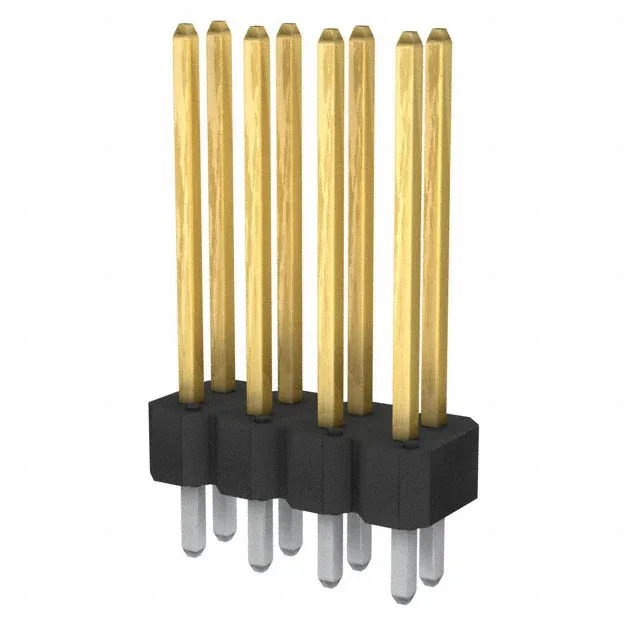

Amphenol ICC (FCI) BERGSTIK® series, 77313-119-08LF, unshrouded breakaway header, 8 positions, 2 rows, 0.100" (2.54mm) pitch, through-hole solder termination, 30.0µin gold mating finish, rated 3A per contact, UL94 V-0 black thermoplastic housing.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.119\" (3.02mm) |
| Overall contact length | 0.724\" (18.40mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.505\" (12.83mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 77313-119-08LF: With 8 positions loaded in a dual-row configuration, the header carries 3 A per contact.
The push-pull fastening means the connection relies on the receptacle's latch or friction — no secondary locking mechanism on the header side. For vibration-prone environments, pair it with a receptacle that has a locking ramp or friction-lock feature.
All positions are loaded.
