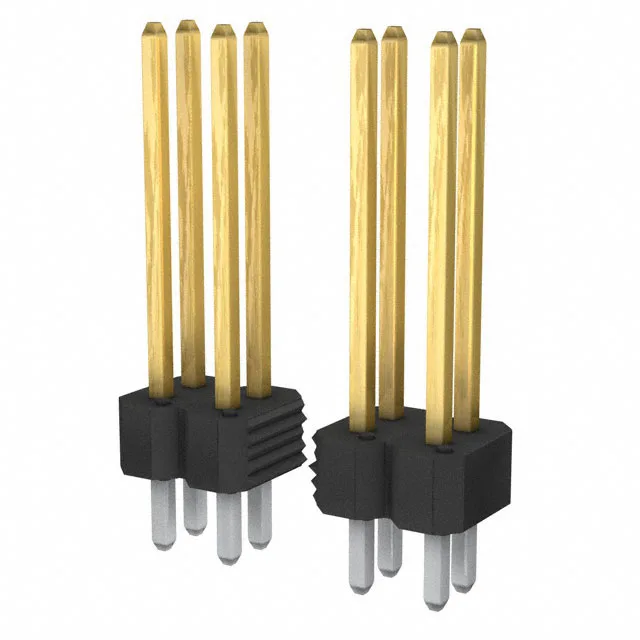

Amphenol ICC (FCI) BERGSTIK® series, 77313-119-16, unshrouded through-hole header, 16 circuits, dual-row, 0.100" (2.54mm) pitch, 30.0µin gold mating finish, tin post, UL94 V-0 black thermoplastic housing.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.119\" (3.02mm) |
| Overall contact length | 0.724\" (18.40mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.505\" (12.83mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 77313-119-16: The unshrouded design gives you direct access to the square pins for wire-wrapping or point-to-point termination, though it offers no polarization — ensure the mating receptacle is keyed or the harness is labeled to prevent mis-mating.
Contacts are phosphor bronze, a standard spring alloy that balances conductivity and flex life.
The mating pitch is 0.100" (2.54mm) for both the row-to-row and pin-to-pin spacing.
