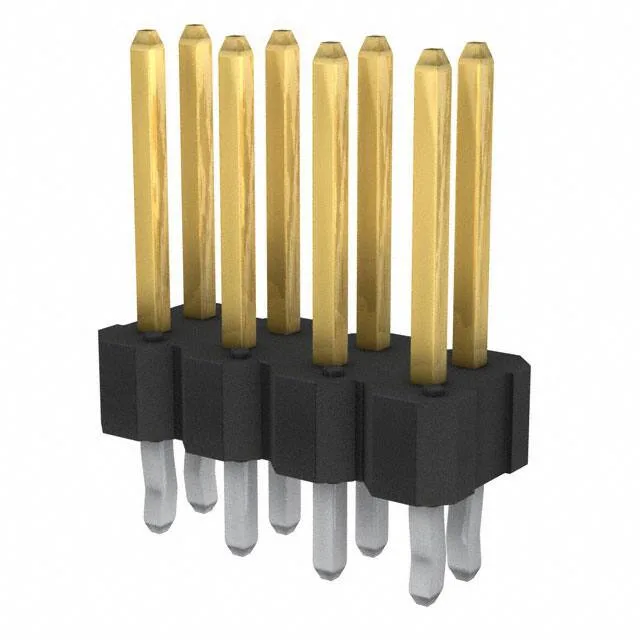

Amphenol ICC (FCI) BERGSTIK® header, order code 77313-122R08LF, 8 positions, dual row, 0.100" (2.54mm) pitch, 3A per contact, through hole, kinked pin solder termination, gold or GXT™ mating contact finish.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.526\" (13.35mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.305\" (7.75mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 77313-122R08LF is the 8-position dual-row member of Amphenol ICC's BERGSTIK breakaway header line, unshrouded with push-pull fastening.
Black thermoplastic insulation carries UL94 V-0 rating. The housing is unshrouded — the pins are exposed after mating, so board-level clearance around the header matters.
The BERGSTIK series includes the same 2.54mm pitch and dual-row layout across multiple position counts. The 77313-122R08LF is a breakaway header — the pins snap to the ordered 8 positions; a longer strip can be trimmed to length if the full 8 are needed.
