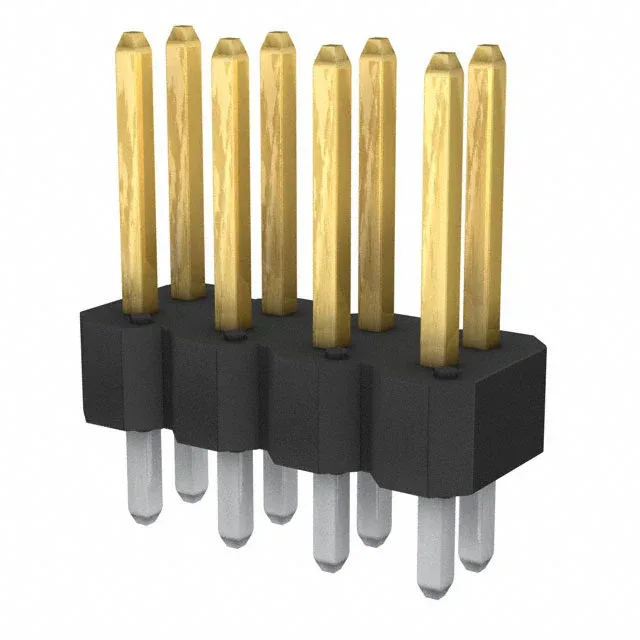

Amphenol ICC (FCI) BERGSTIK® unshrouded header, 8 circuits, 0.100" (2.54 mm) pitch, dual-row, through-hole, gold or GXT™ mating finish, 3 A per contact, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Overall contact length | 0.480\" (12.19mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.266\" (6.75mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Through-hole mounting with a 0.114" (2.90 mm) post length — the solder tail protrudes enough for a good fillet on a standard 0.062" board, but check the board thickness if you're stacking multiple boards. The 0.100" pitch leaves 0.050" between adjacent pins — plenty of room for a single trace between pads on a 2-layer board.
Any BERGSTIK® header with the same 0.100" pitch, dual-row configuration, and 8 positions loaded is a direct fit — for example, a tin-plated version if you don't need the gold mating cycles. The base product number 77313 covers the series; the suffix changes with plating and post length.
